LeeBoy 8616D
LeeBoy Tracked Pavers
- Extended warranty
- Flexible financing
- Tailored service contracts
LeeBoy 8616D high-production tracked asphalt paver with 127 hp Cummins Tier 4 Final engine, 15'6" variable paving width, 14-ton hopper, and steel track drive for commercial and highway paving.
The LeeBoy 8616D is a high-production tracked asphalt paver powered by a 127 hp Cummins Tier 4 Final engine, delivering paving widths variable up to 15 feet 6 inches and a 14-ton hopper capacity. The steel track drive system provides superior traction and stability on large commercial, highway, and municipal paving projects requiring maximum production output.
Technical specifications
Here are the key specifications for 8616D. Want more details? Download the brochure or contact us.
- Machine Type Tracked Asphalt Paver
- Operating Weight 23 450 lb
- Engine Make Cummins
- Engine Model Tier 4 Final Turbocharged Diesel
- Fuel Type Diesel
- Engine Output 127 hp
- Hopper Capacity 14 ton
- Min. Paving Width 8 - 18 ft
- Max. Paving Depth 8 in
- Travel Speed 3.50 mph
- Fuel Tank Capacity 45 gal
- Machine Length 16.50 in
- Machine Width 8.50 in
- Machine Height 9 in
- Screed Type Legend HD Pro Electric
- Drive Type Crawler (Steel Track)
- Drive variants Combustion
Benefits & Features
Here are the key benefits and features of the 8616D. Want to know more? Download the brochure or get in touch with us.
Steel Track Drive for Superior Traction and Stability
The 8616D features a hydrostatically powered steel track drive system providing superior traction and flotation on all ground conditions. The wide steel tracks distribute the machine’s 23,450 lb operating weight evenly, preventing rutting and maintaining a stable paving platform for consistent mat quality on large commercial and highway paving projects.
14-Ton Hopper for Maximum Production
The 8616D’s 14-ton capacity material hopper with independently controlled hydraulic augers and under-auger cutoff gates ensures continuous material delivery to the screed on high-volume paving operations. The ultra-efficient material management system and large hopper capacity minimize truck exchange stops, maximizing paving production throughout the workday.

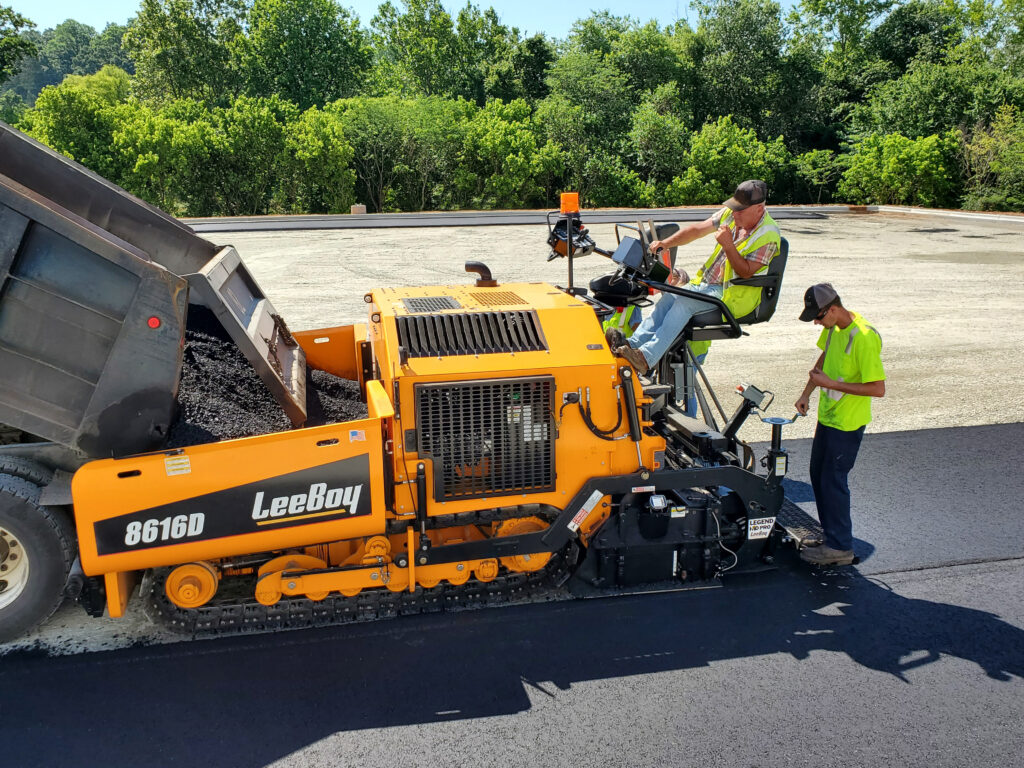

127 HP Cummins Engine with HD Pro Screed
Powered by a 127 hp Cummins Tier 4 Final turbocharged diesel engine, the 8616D delivers the power and torque needed for demanding highway and commercial paving applications. The Legend HD Pro Electric screed with 10 kW generator provides variable paving widths up to 15 feet 6 inches and paving depths up to 8 inches for versatile large-scale paving.
