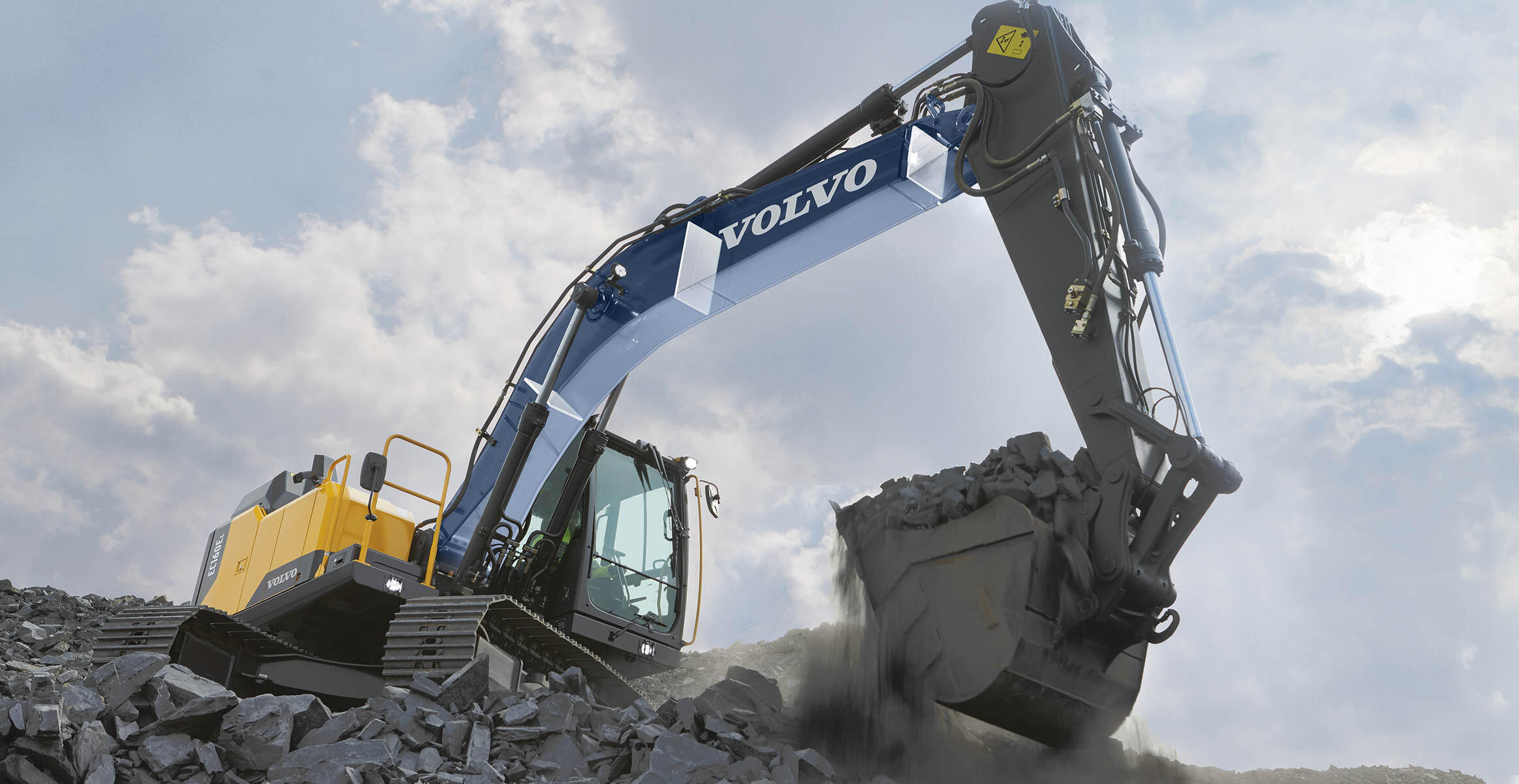

Volvo EC160E
Medium crawler excavators
- Extended warranty
- Flexible financing
- Tailored service contracts
Making hard work easy, the Volvo EC160E is designed with efficiency at its core. Thoughtfully engineered to maximize uptime, reduce fuel consumption, and shorten cycle times, it delivers elite performance across applications such as pioneering, road building, and trenching. The result is a highly productive, versatile machine that adds value to any fleet.
Powered by a Volvo D4 Stage V engine and advanced hydraulic system, the EC160E helps reduce fuel consumption and shorten cycle times. In the 16-ton class, it delivers strong control and stability to support operational efficiency and profitability. Built with Volvo’s commitment to quality, every component is designed for durability and uptime, while the operator-focused cab provides an intuitive, comfortable environment that supports safe, productive workdays.
Technical specifications
Here are the key specifications for EC160E. Want more details? Download the brochure or contact us.
- Min. Operating weight 38 360 - 39 065 lb
- Min. Excavator bucket capacity 0.39 - 1.26 yd³
- Gross power (kW) 148 hp
- Gross power (HP) 148 hp
- Engine D4J
- Max. flow hydraulic pump 80.30 gal/min
- Max. slew speed 12.50 rpm
- Max. slew torque 38 132 lbf·ft
- Max. drawbar pull 34 171 lbf
- Max. breakout force 27 404 lbf
- Max. tear out force 19 423 lbf
- Max. digging reach 27.92 ft
- Max. digging depth 19.92 ft
- Max. cutting height 28.08 ft
- Tail swing radius 8.33 ft
- Sound level in cab (LpA) 69 dB
- External sound level (LwH) 101 dB
Benefits & Features
Here are the key benefits and features of the EC160E. Want to know more? Download the brochure or get in touch with us.
Advanced Fuel Efficiency
Lower your running costs with Volvo’s industry-leading fuel efficiency. The powerful engine, combined with the intelligent ECO Mode, significantly reduces fuel consumption without compromising the high performance needed for demanding applications.
Responsive and Smooth Hydraulics
Experience superior control and faster cycle times with a highly responsive hydraulic system. This advanced design increases flow for accurate, combined operations, making it easier for the operator to achieve high productivity and quality work.
Human Machine Interface (HMI)
All machine interfaces, including the keypad and 8” LCD monitor, are ergonomically positioned to deliver outstanding control and efficiency. This intuitive design helps reduce operator fatigue and makes managing the machine’s functions simple.
