Volvo EC20E
Compact excavators
- Extended warranty
- Flexible financing
- Tailored service contracts
Compact versatility defines the Volvo EC20E. Designed for easy operation, transport, and servicing, it helps keep operating costs low. As a capable 2-ton performer, it combines strong lifting power, stability, and smooth, precise controls, enabling operators to work confidently and productively across landscaping, utility, and light construction tasks.
Whether you own it or rent it, the EC20E is engineered to boost your profitability. Its focus on simplicity and reliability ensures maximum uptime, making it a valuable and hardworking asset for any job site where agility and efficiency matter most.
Technical specifications
Here are the key specifications for EC20E. Want more details? Download the brochure or contact us.
- Min. Operating weight 4 145 - 4 332 lb
- Min. Excavator bucket capacity 0.08 yd³
- Gross power (kW) 16.10 hp
- Gross power (HP) 16.10 hp
- Engine D0.9A
- Max. flow hydraulic pump 13 gal/min
- Max. slew speed 9.50 rpm
- Max. slew torque 2 581 lbf·ft
- Max. drawbar pull 3 642 lbf
- Max. breakout force 4 107 lbf
- Max. tear out force 2 763 lbf
- Max. digging reach 14.08 ft
- Max. digging depth 8.37 ft
- Max. cutting height 9.48 ft
- Tail swing radius 3.44 ft
- Sound level in cab (LpA) 78 dB
- External sound level (LwH) 93 dB
Benefits & Features
Here are the key benefits and features of the EC20E. Want to know more? Download the brochure or get in touch with us.
Effortless Transportation and Access
Get to any job site with ease. With a low transport weight and a variable undercarriage that retracts to less than 1m, the EC20E can easily pass through narrow gates and be transported on a small trailer.
Simple Operation and Service

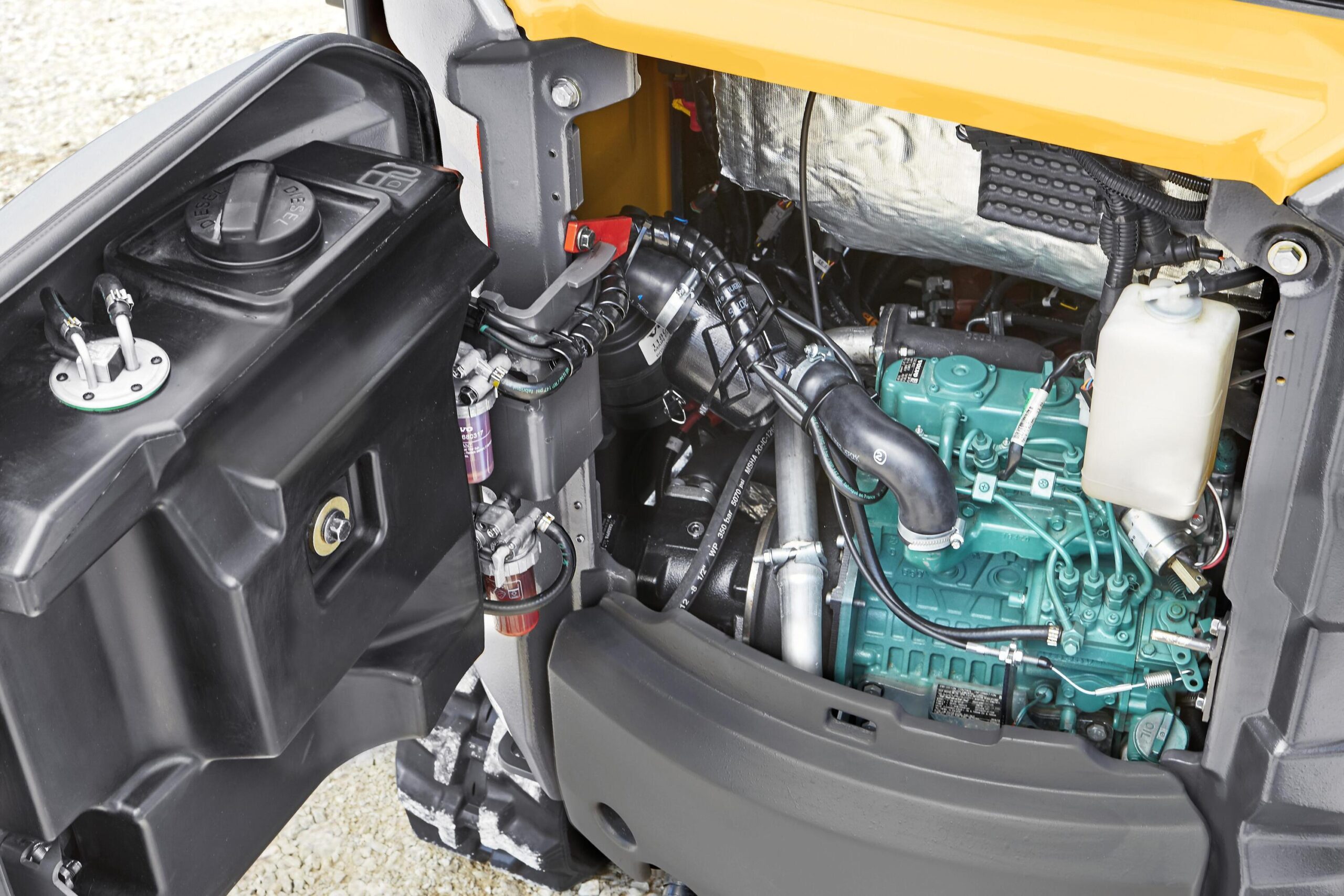

Designed for low operating costs, the EC20E features intuitive controls for easy operation and ground-level access to all service points, making daily maintenance quick and simple, ensuring maximum uptime.
Enhanced Operator Comfort and Safety Features
The Volvo EC20E prioritizes operator well-being with a spacious, ergonomic cabin that reduces fatigue during long shifts. Its low noise levels and excellent visibility create a safer working environment, while integrated safety systems like overload warning and travel alarms help prevent accidents, ensuring confidence and productivity on every job.
