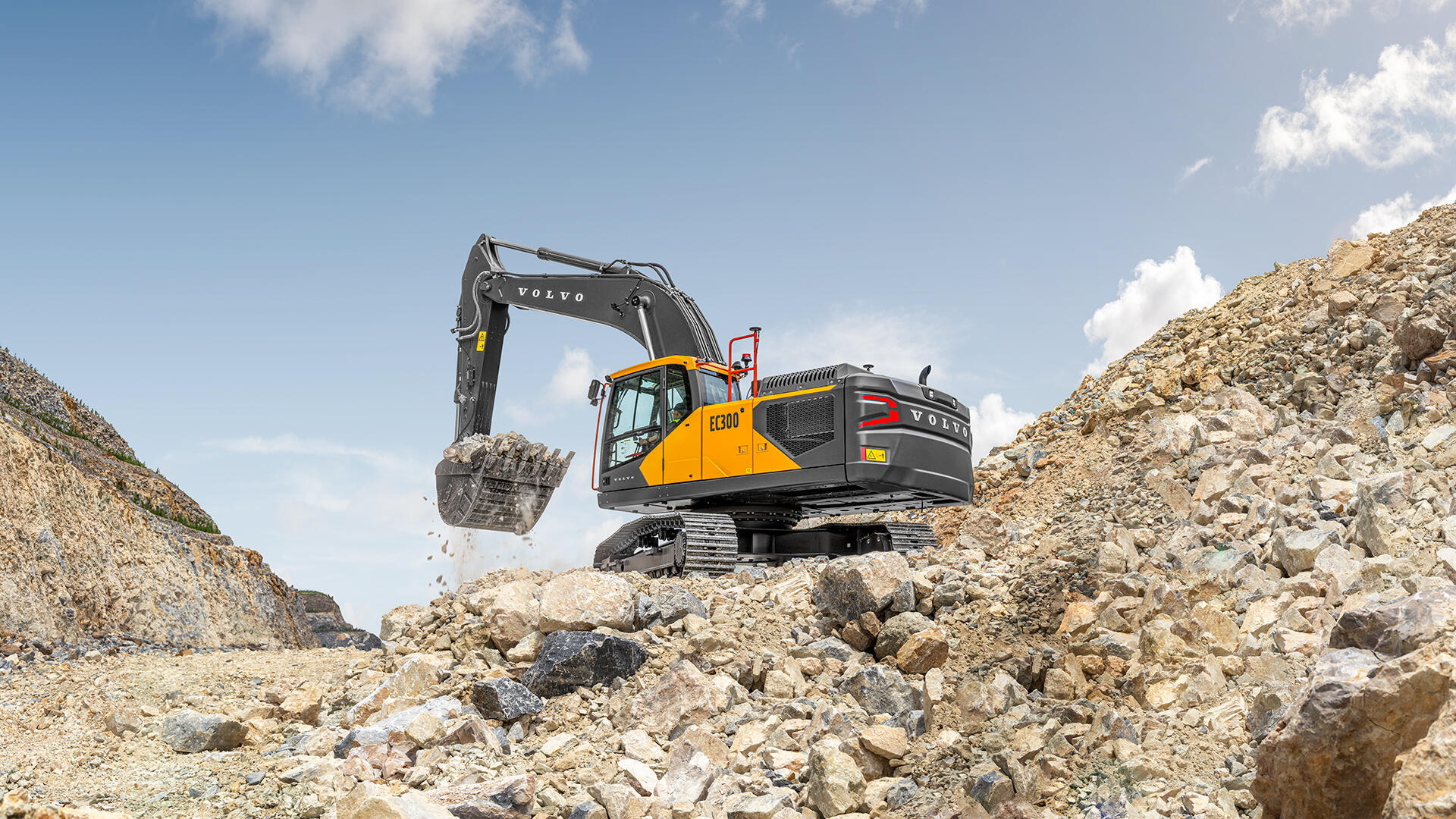

Volvo EC300 Hybrid
Large crawler excavators
- Extended warranty
- Flexible financing
- Tailored service contracts
A straightforward solution, the Volvo EC300 Hybrid is a versatile machine for quarries, trenching, digging, and site preparation. Customizable with purpose-built Volvo attachments, it forms a reliable unit that improves cycle times and boosts fuel efficiency, while delivering the safety, comfort, and performance expected from Volvo.
Delivering the safety, comfort, and performance you expect from Volvo, the EC300 Hybrid combines proven reliability with advanced hybrid technology, making it the smart choice for efficiency and long-term productivity.
Technical specifications
Here are the key specifications for EC300 Hybrid. Want more details? Download the brochure or contact us.
- Min. Operating weight 67 373 - 72 356 lb
- Min. Excavator bucket capacity 0.68 - 2.75 yd³
- Gross power (kW) 253 hp
- Gross power (HP) 257 hp
- Engine D8M
- Max. flow hydraulic pump 72.90 gal/min
- Max. slew speed 11 rpm
- Max. slew torque 84 820 lbf·ft
- Max. drawbar pull 55 753 lbf
- Max. breakout force 48 109 lbf
- Max. tear out force 40 241 lbf
- Max. digging reach 33.42 ft
- Max. digging depth 22.42 ft
- Max. cutting height 20 ft
- Tail swing radius 10.25 ft
- Sound level in cab (LpA) 70 dB
- External sound level (LwH) 104 dB
- Drive variants Hybrid
Benefits & Features
Here are the key benefits and features of the EC300 Hybrid. Want to know more? Download the brochure or get in touch with us.
Volvo Hydraulic Hybrid Technology
Experience the power of Volvo’s hybrid solution. It captures “free” energy from the boom-down motion to charge a hydraulic accumulator. This stored energy then assists the engine, resulting in lower fuel consumption and emissions.
Up to 17% Fuel Efficiency Improvement
Significantly lower your operating costs and reduce your environmental impact. The advanced hybrid technology delivers up to a 17% improvement in fuel efficiency without compromising the machine’s powerful and productive performance.
Uncompromised Power and Productivity
Get hybrid efficiency without sacrificing performance. The EC300 Hybrid delivers the same powerful breakout forces and fast cycle times as the conventional model, ensuring you meet your production targets on any job site.
