Volvo EC300E Hybrid
Large crawler excavators
- Extended warranty
- Flexible financing
- Tailored service contracts
The upgraded Volvo EC300E Hybrid uses unique hydraulic hybrid technology to capture boom-down energy and store it in an accumulator. This stored energy drives the assist motor, which supports the engine system for enhanced efficiency.
The result is up to 15% greater fuel efficiency without compromising the power and performance of a conventional EC300E. Built for reliability, productivity, and sustainability, the EC300E Hybrid is a smarter solution for modern construction operations.
Technical specifications
Here are the key specifications for EC300E Hybrid. Want more details? Download the brochure or contact us.
- Min. Operating weight 68 321 - 70 710 lb
- Min. Excavator bucket capacity 0.68 - 2.75 yd³
- Gross power (kW) 252 hp
- Gross power (HP) 252 hp
- Engine D8M
- Max. flow hydraulic pump 145.80 gal/min
- Max. slew speed 11 rpm
- Max. slew torque 84 672 lbf·ft
- Max. drawbar pull 33 272 lbf
- Max. breakout force 46 450 lbf
- Max. tear out force 33 250 lbf
- Max. digging reach 35.17 ft
- Max. digging depth 24.08 ft
- Max. cutting height 20 ft
- Tail swing radius 10.25 ft
- Sound level in cab (LpA) 70 dB
- External sound level (LwH) 104 dB
- Drive variants Hybrid
Benefits & Features
Here are the key benefits and features of the EC300E Hybrid. Want to know more? Download the brochure or get in touch with us.

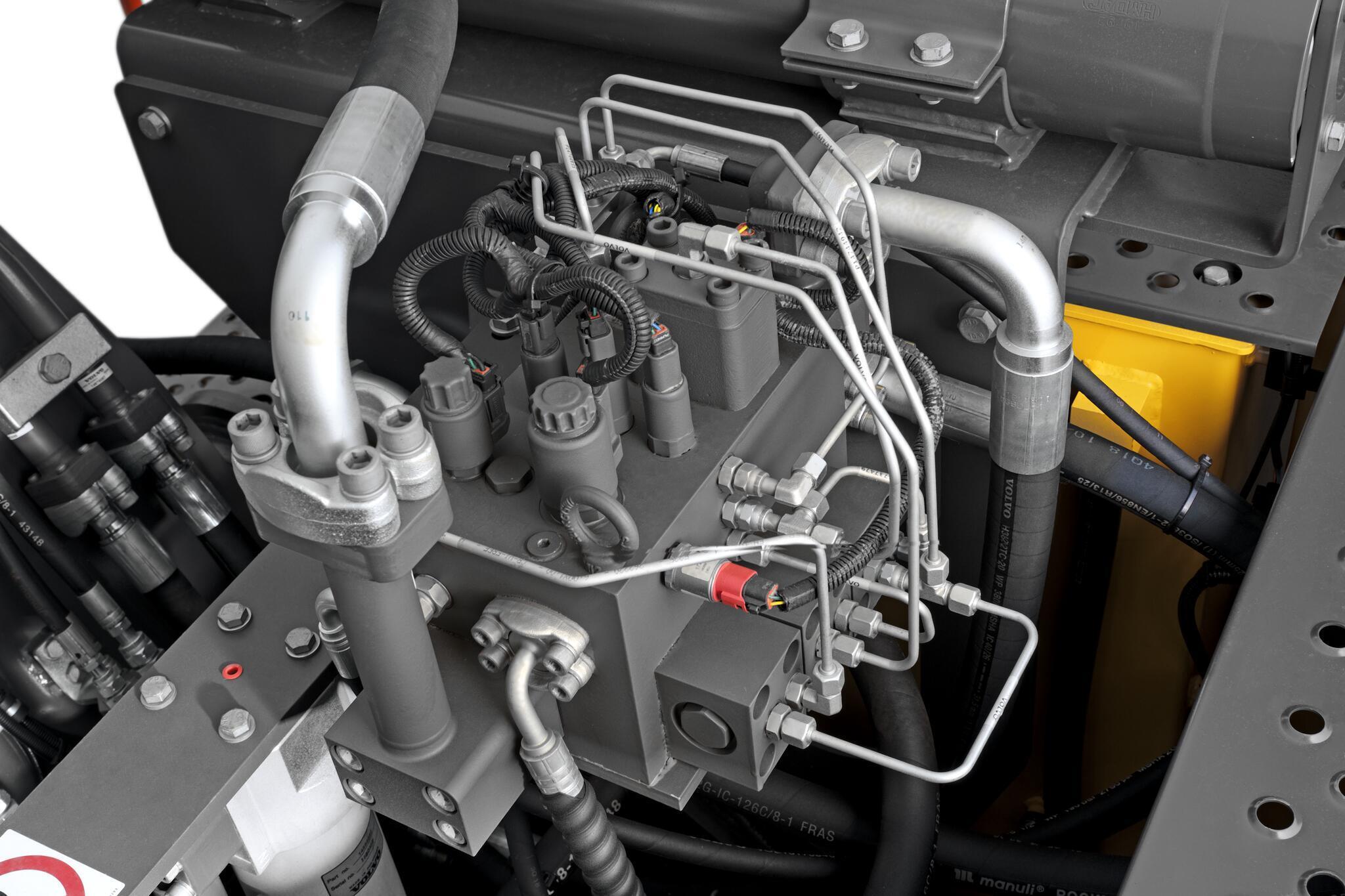

Volvo Hydraulic Hybrid Technology
Experience the power of Volvo’s hybrid solution. It captures “free” energy from the boom-down motion to charge a hydraulic accumulator. This stored energy then assists the engine, resulting in lower fuel consumption and emissions.
Up to 15% Fuel Efficiency Improvement
Significantly lower your operating costs and reduce your environmental impact. The advanced hybrid technology delivers up to a 15% improvement in fuel efficiency without compromising the machine’s powerful and productive performance.
Uncompromised Power and Productivity
Get hybrid efficiency without sacrificing performance. The EC300E Hybrid delivers the same powerful breakout forces and fast cycle times as the conventional model, ensuring you meet your production targets on any job site.
