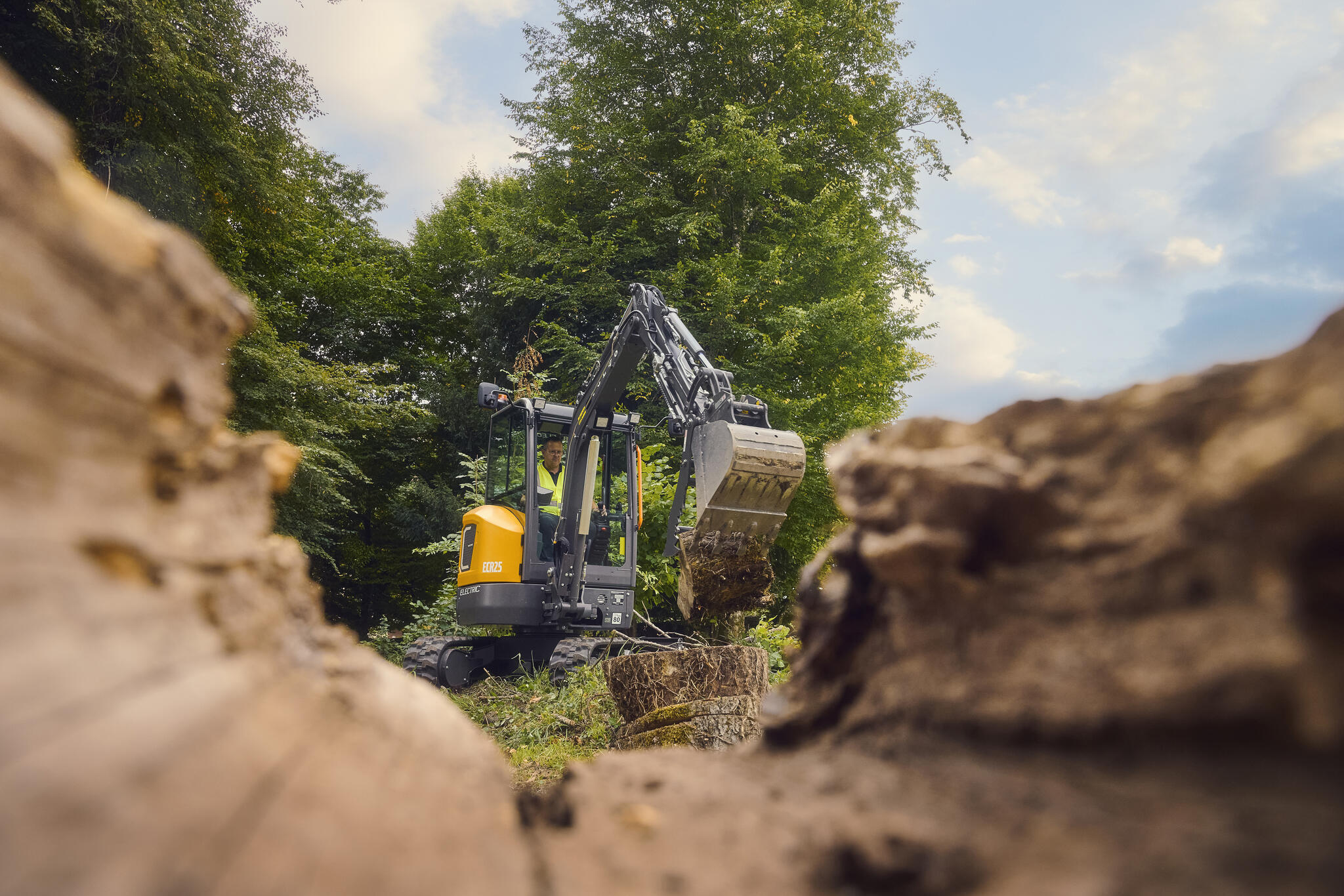

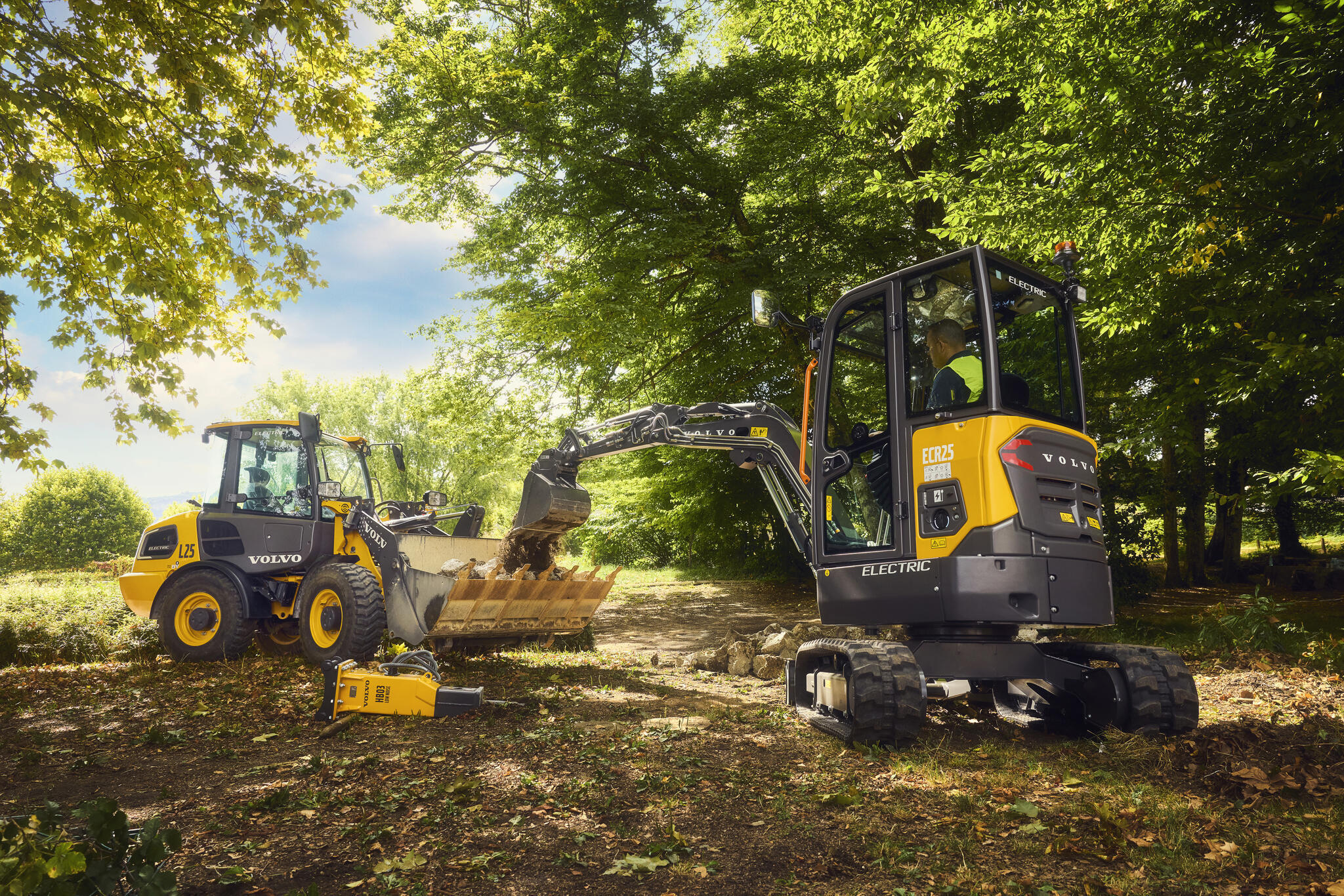

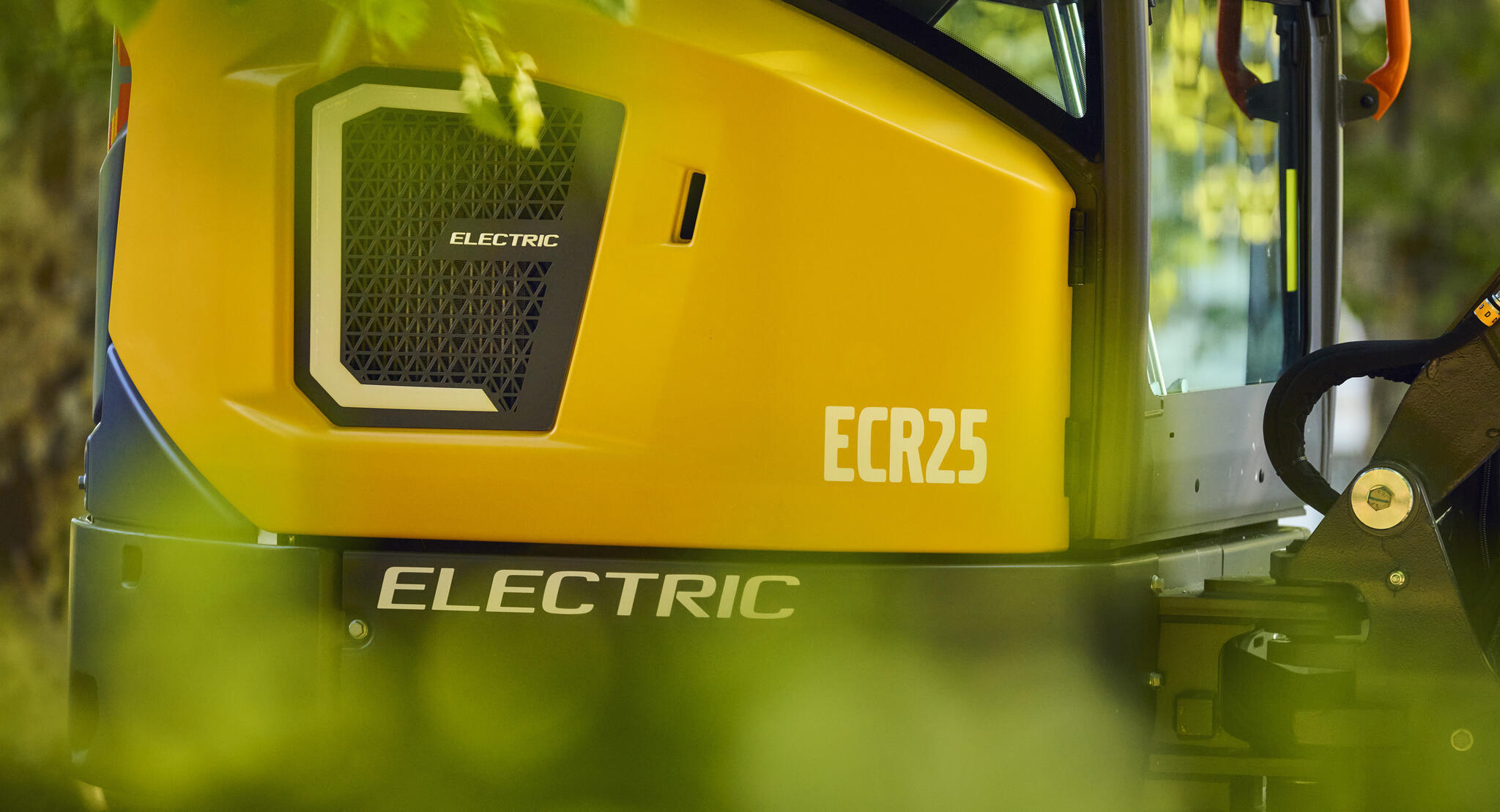

Volvo ECR25 Electric
Electric Compact Excavators
- Extended warranty
- Flexible financing
- Tailored service contracts
The improved Volvo ECR25 Electric raises the bar for compact electric excavation. With zero emissions, double the runtime, faster charging, and best-in-class power, it delivers the performance you expect in a compact machine, setting a new standard for productivity and sustainability.
The Volvo ECR25 Electric is a versatile performer in the 2.5-ton class, with a short swing radius design built for tight spaces. Delivering strong performance with zero emissions and low noise, it proves you no longer have to choose between power and sustainability. Compact, quiet, and capable, it’s an ideal solution for sensitive job sites and urban environments.
Technical specifications
Here are the key specifications for ECR25 Electric. Want more details? Download the brochure or contact us.
- Min. Operating weight 5 908 - 6 129 lb
- Min. Excavator bucket capacity 0.07 - 0.16 yd³
- Battery capacity 20 kWh
- Gross power (kW) 24 hp
- Engine PM
- Max. flow hydraulic pump 15.30 gal/min
- Max. slew speed 9.40 rpm
- Max. slew torque 36 141 lbf·ft
- Max. drawbar pull 4 271 lbf
- Max. breakout force 5 013 lbf
- Max. tear out force 3 350 lbf
- Max. digging reach 15.08 ft
- Max. digging depth 9.75 ft
- Max. cutting height 13.75 ft
- Tail swing radius 2.50 ft
- Sound level in cab (LpA) 74 dB
- External sound level (LwH) 84 dB
- Battery type Lithium Ion
- Battery voltage 48 V
- Indicative runtime (depending on application) 4 h
- Drive variants Battery-electric
Benefits & Features
Here are the key benefits and features of the ECR25 Electric. Want to know more? Download the brochure or get in touch with us.
Double the Runtime, Faster Charging

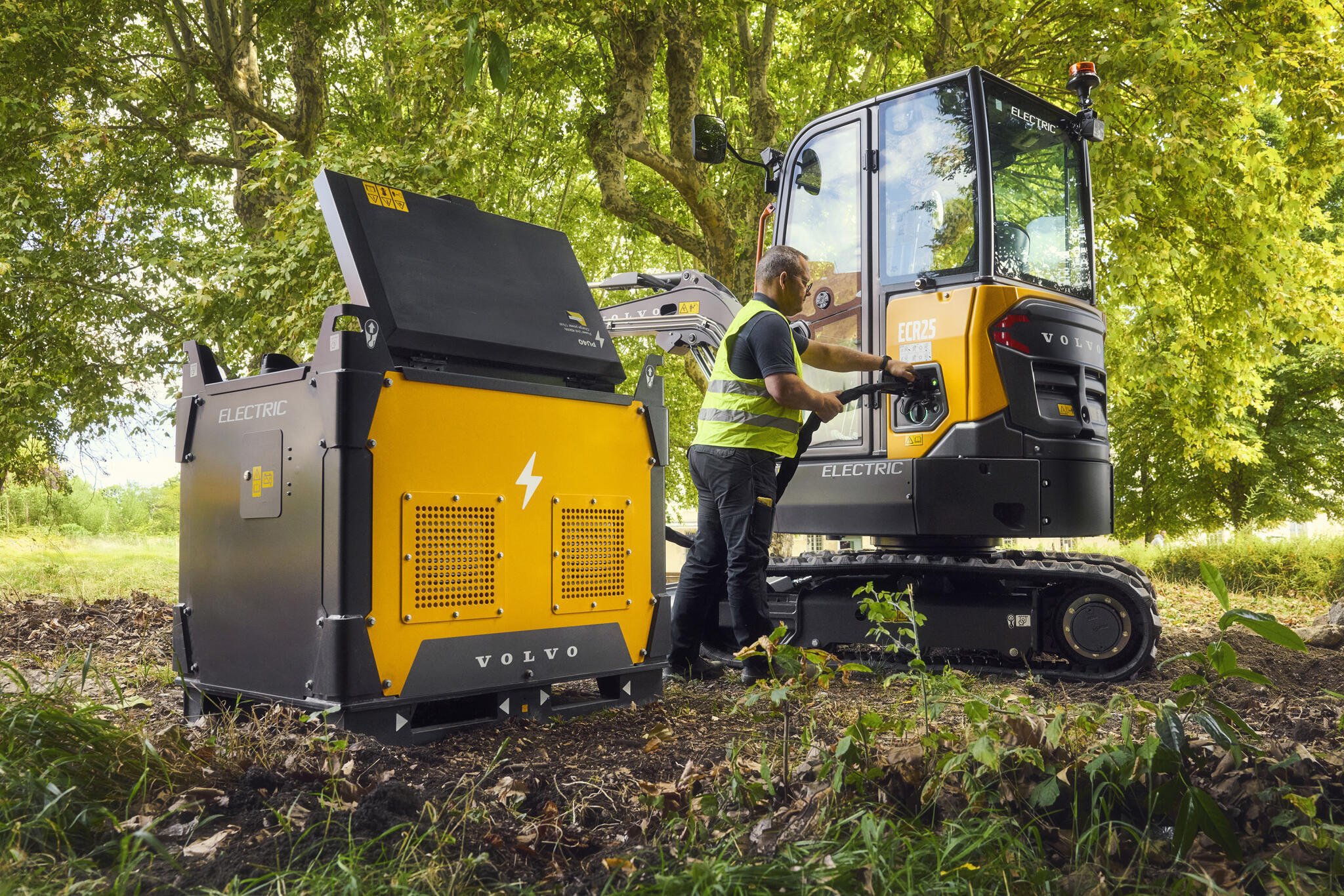

Work for longer with complete confidence. This new generation features double the runtime and faster charging options, including a powerful off-board fast charger that gets you back to work in just one hour.
Best-in-Class Power, Zero Emissions
Don’t compromise on performance. The ECR25 Electric delivers best-in-class power and lifting capacity, all with the silent, zero-emission operation that unlocks new business opportunities in sensitive environments.
Intelligent Safety & Operator Comfort Combined
The Volvo ECR25 Electric is designed with advanced safety systems including a 360° camera and overload alerts to keep your job site secure. Inside the spacious cab, operators enjoy ergonomic controls, adjustable seating, and climate control, ensuring comfort and focus during long shifts in any environment.
