Volvo ECR50
Compact excavators
- Extended warranty
- Flexible financing
- Tailored service contracts

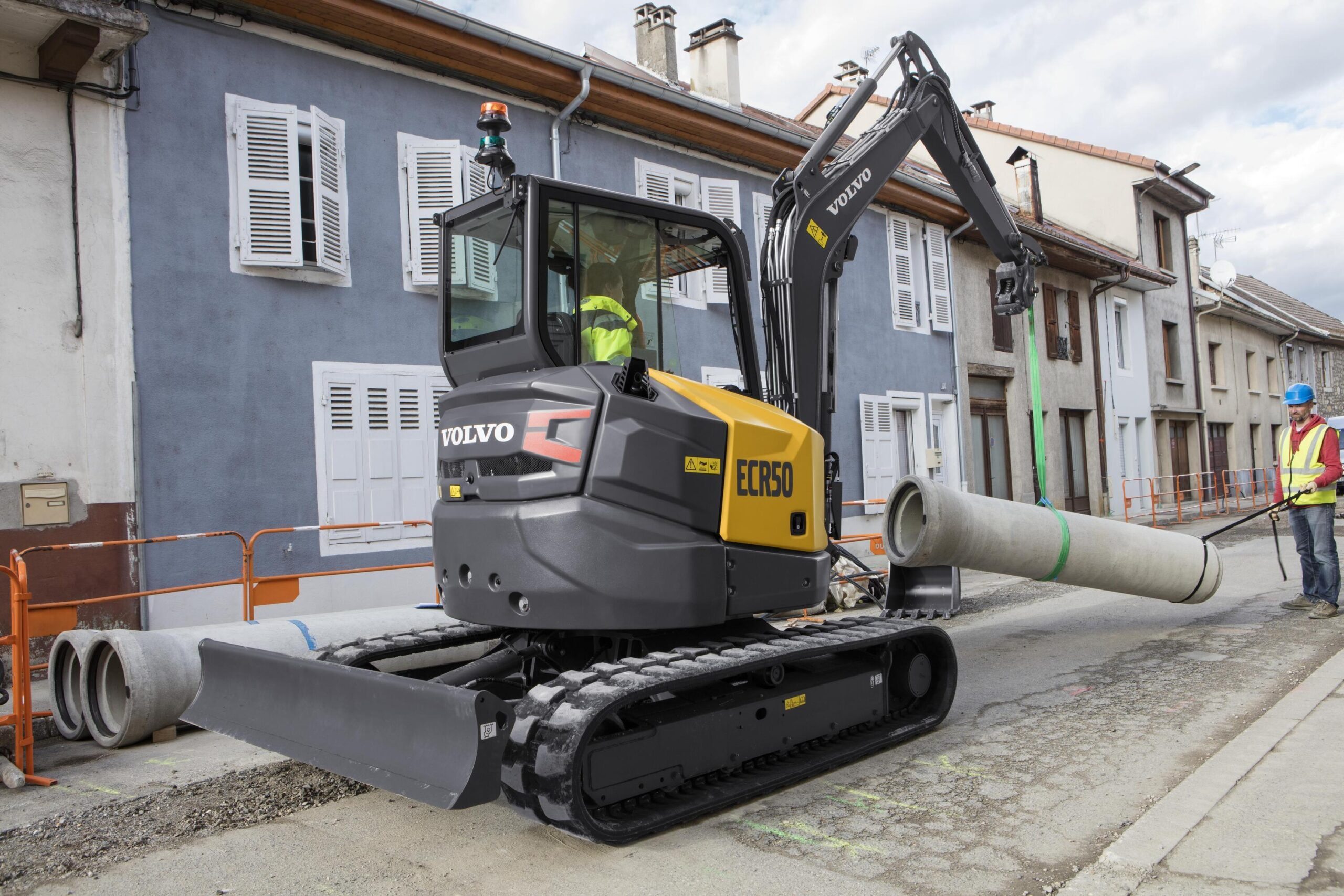

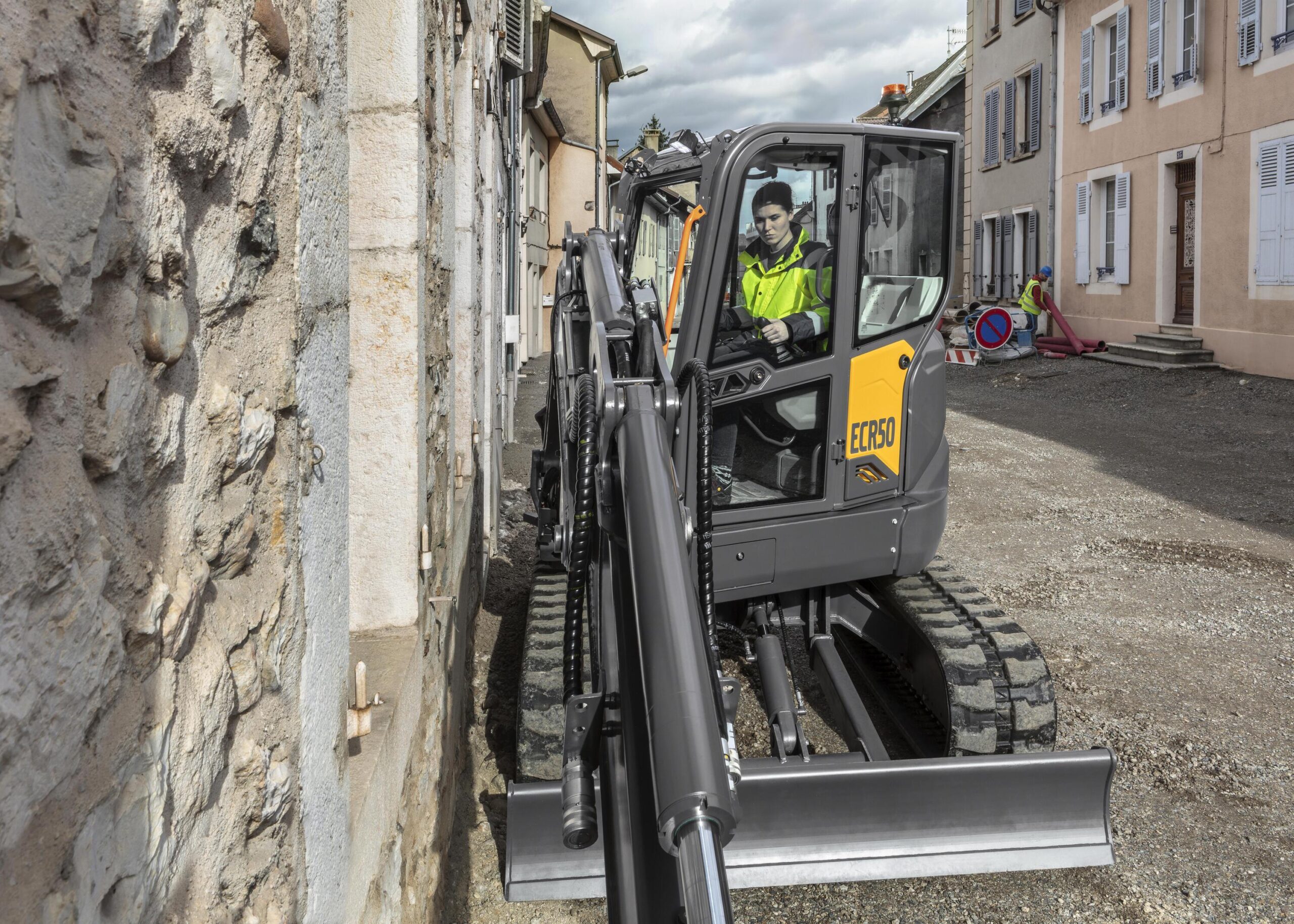

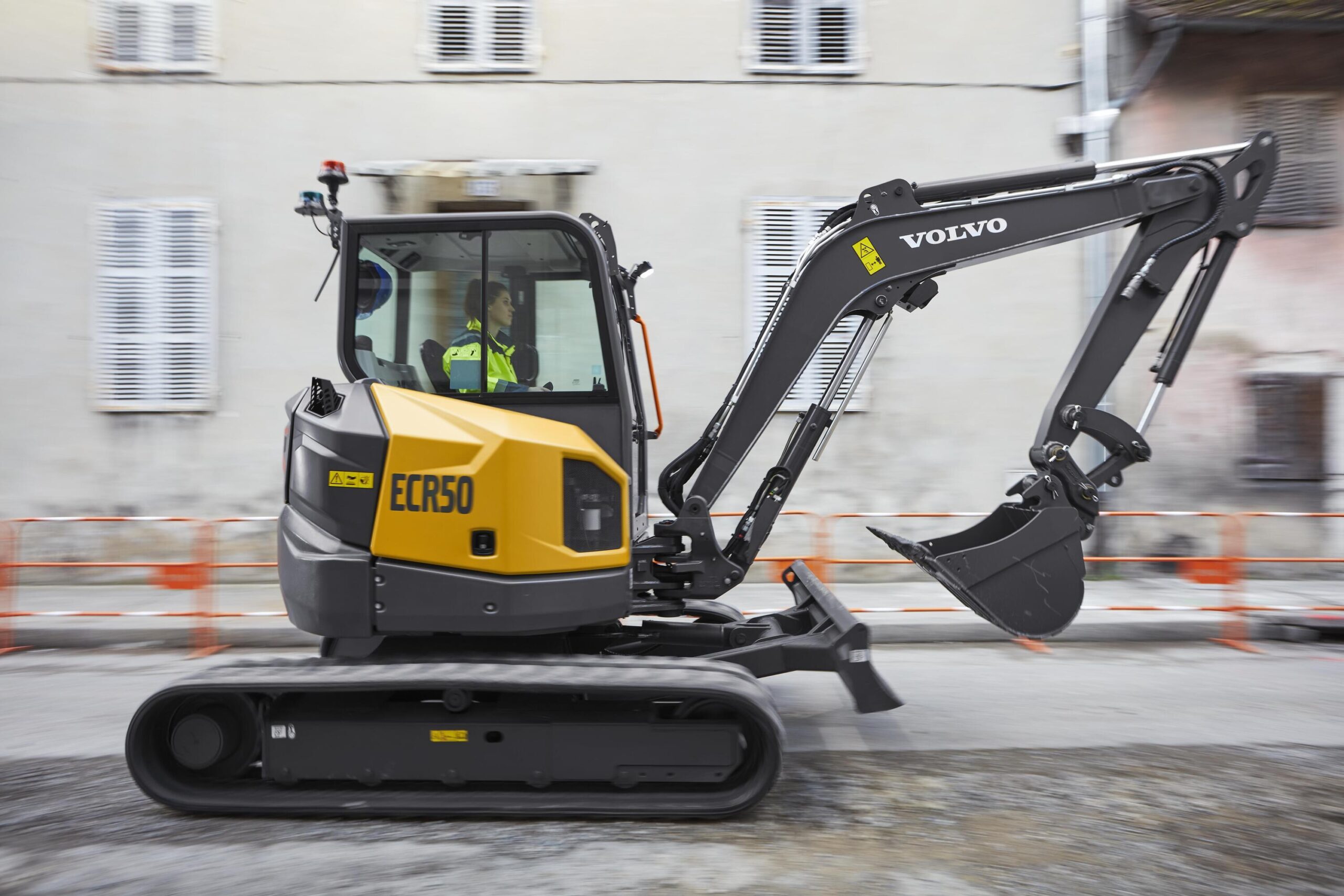

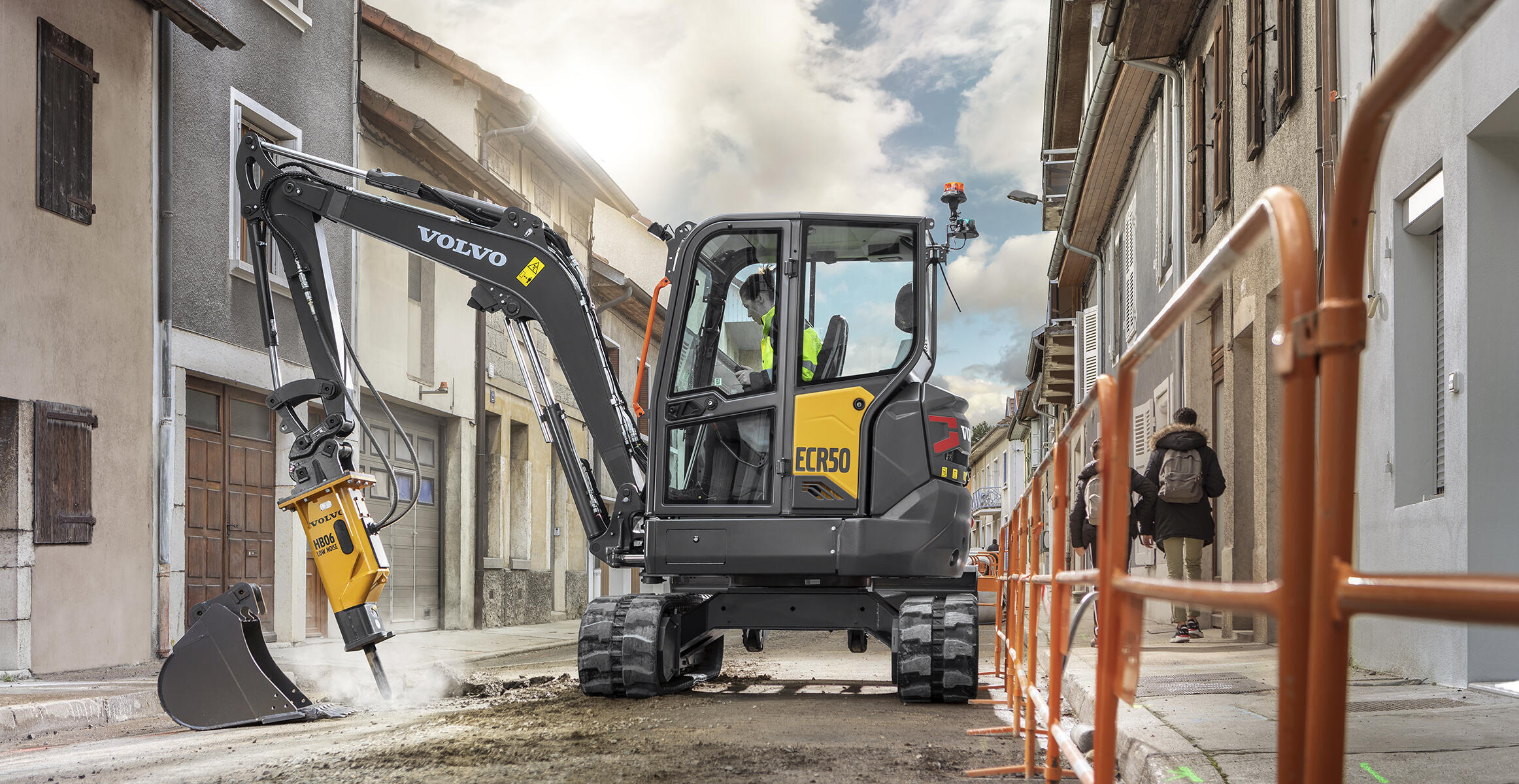

The F-generation Volvo ECR50 is the ultimate all-rounder for confined spaces. With zero tail swing, it delivers safe, productive performance in tight job sites, along with superior stability and best-in-class lifting capacity
A true 5-ton performer, the ECR50 combines superior stability with superior lifting capacity for confident performance across applications. Intuitive controls and versatile attachment compatibility enable precise, efficient operation on a wide range of tasks. Built for durability with easy servicing, it maximizes uptime and helps keep operating costs low, making it a powerful, user-friendly, and profitable addition to any modern fleet.
Technical specifications
Here are the key specifications for ECR50. Want more details? Download the brochure or contact us.
- Min. Operating weight 11 133 - 11 133 lb
- Gross power (kW) 42 hp
- Gross power (HP) 42 hp
- Engine D2.4H
- Max. flow hydraulic pump 31.70 gal/min
- Max. slew speed 8.50 rpm
- Max. slew torque 10 178 lbf·ft
- Max. drawbar pull 8 610 lbf
- Max. breakout force 8 134 lbf
- Max. tear out force 5 834 lbf
- Max. digging reach 20.42 ft
- Max. digging depth 12.75 ft
- Max. cutting height 19 ft
- Tail swing radius 3.29 ft
- Sound level in cab (LpA) 74 dB
- External sound level (LwH) 96 dB
Benefits & Features
Here are the key benefits and features of the ECR50. Want to know more? Download the brochure or get in touch with us.
Zero Tail Swing
Work with total confidence in the tightest spaces. The zero tail swing design means the rear of the machine does not extend beyond the tracks when turning, maximizing safety and maneuverability near walls.
Best-in-Class Lifting Capacity
Punch above your weight with best-in-class lifting capacity. This superior performance, combined with excellent stability, allows the ECR50 to handle heavier loads, increasing its versatility and productivity.

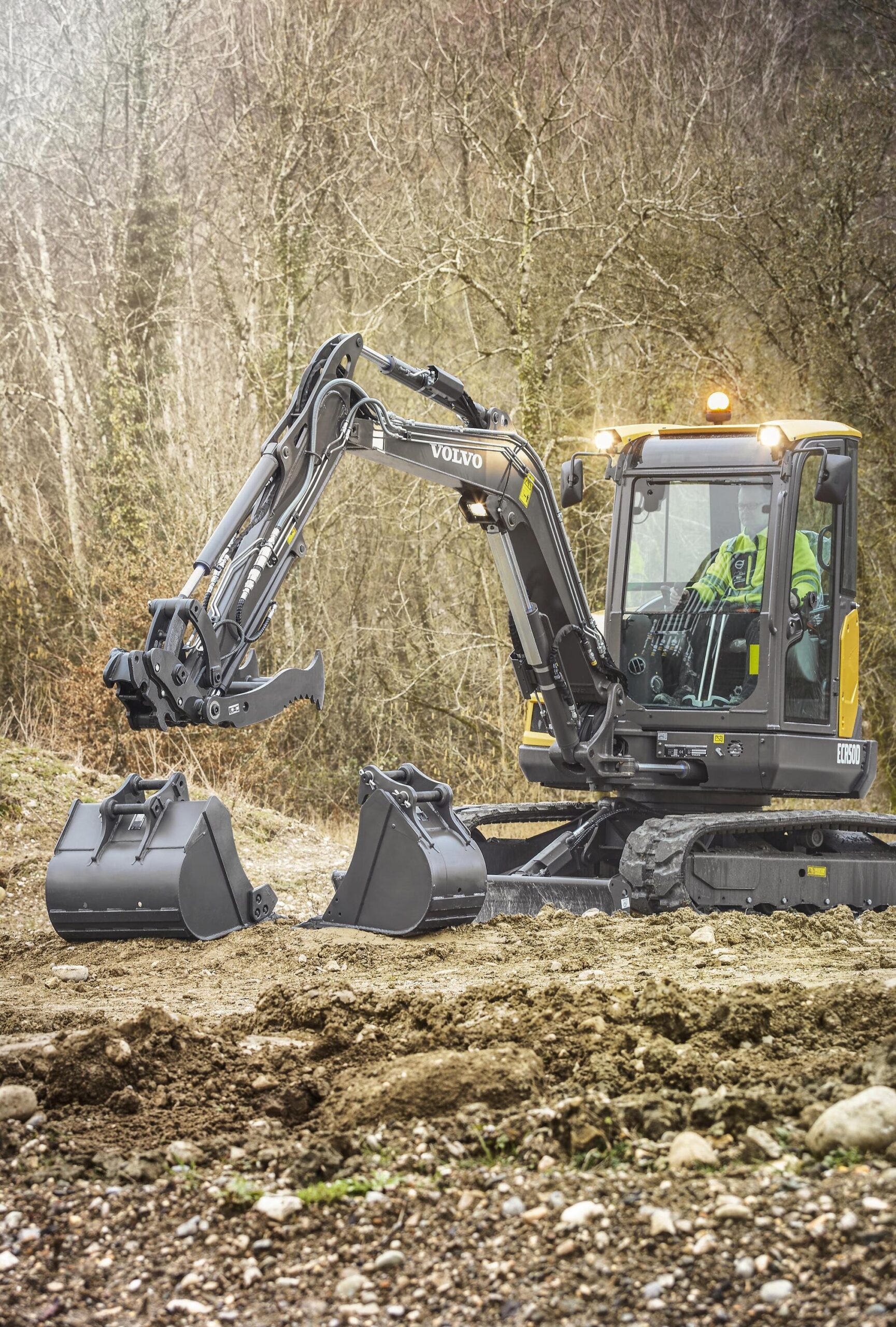

Enhanced Operator Comfort and Intuitive Controls
Experience superior operator comfort with the Volvo ECR50’s spacious, ergonomically designed cab featuring intuitive controls and excellent visibility. The low-noise environment reduces fatigue, while adjustable seating and climate control ensure a productive day on site. These thoughtful features promote precision and efficiency, making every task easier and more enjoyable.
