Volvo ECR58
Compact excavators
- Extended warranty
- Flexible financing
- Tailored service contracts

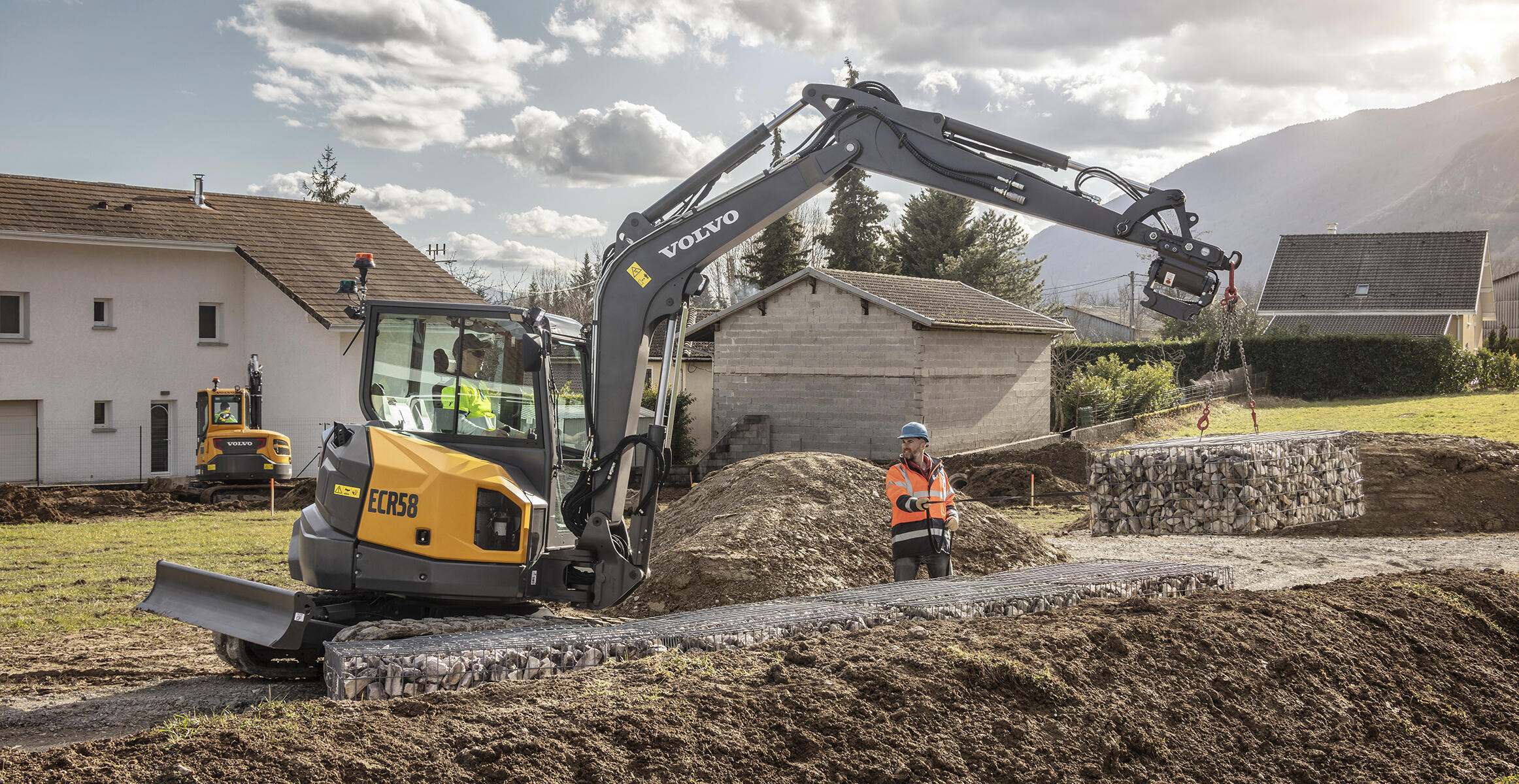

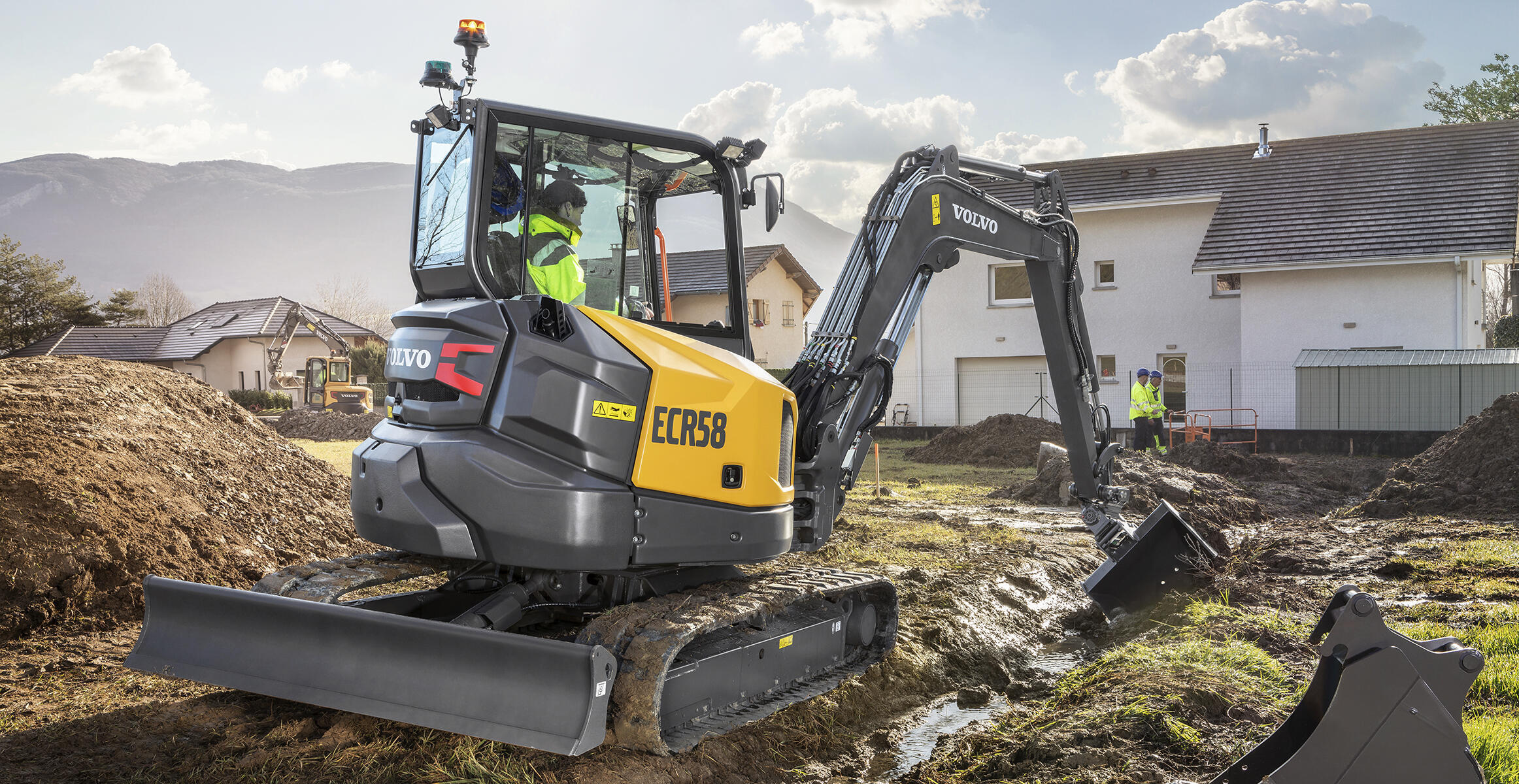

The F-generation Volvo ECR58 combines outstanding operator comfort with powerful performance. As a short swing radius excavator, it delivers superior stability, breakout and lifting force, and fast cycle times, even in tough conditions.
As a versatile machine in the 6-ton class, it boasts impressive breakout and lifting forces. Its highly customizable hydraulics make it a true multi-tool carrier, allowing for quick and easy attachment changes to achieve top results in any application.
With a focus on the operator experience, the ECR58 ensures that comfort and productivity go hand-in-hand. It’s a powerful, adaptable, and easy-to-use compact excavator, built to be a profitable and reliable partner for your business.
Technical specifications
Here are the key specifications for ECR58. Want more details? Download the brochure or contact us.
- Min. Operating weight 12 875 - 12 875 lb
- Gross power (kW) 48 hp
- Gross power (HP) 48 hp
- Engine D2.6H
- Max. flow hydraulic pump 37.80 gal/min
- Max. slew speed 8.70 rpm
- Max. slew torque 9 515 lbf·ft
- Max. drawbar pull 10 678 lbf
- Max. breakout force 9 422 lbf
- Max. tear out force 6 387 lbf
- Max. digging reach 19.75 ft
- Max. digging depth 12.08 ft
- Max. cutting height 18.50 ft
- Tail swing radius 3.75 ft
- Sound level in cab (LpA) 74 dB
- External sound level (LwH) 97 dB
Benefits & Features
Here are the key benefits and features of the ECR58. Want to know more? Download the brochure or get in touch with us.

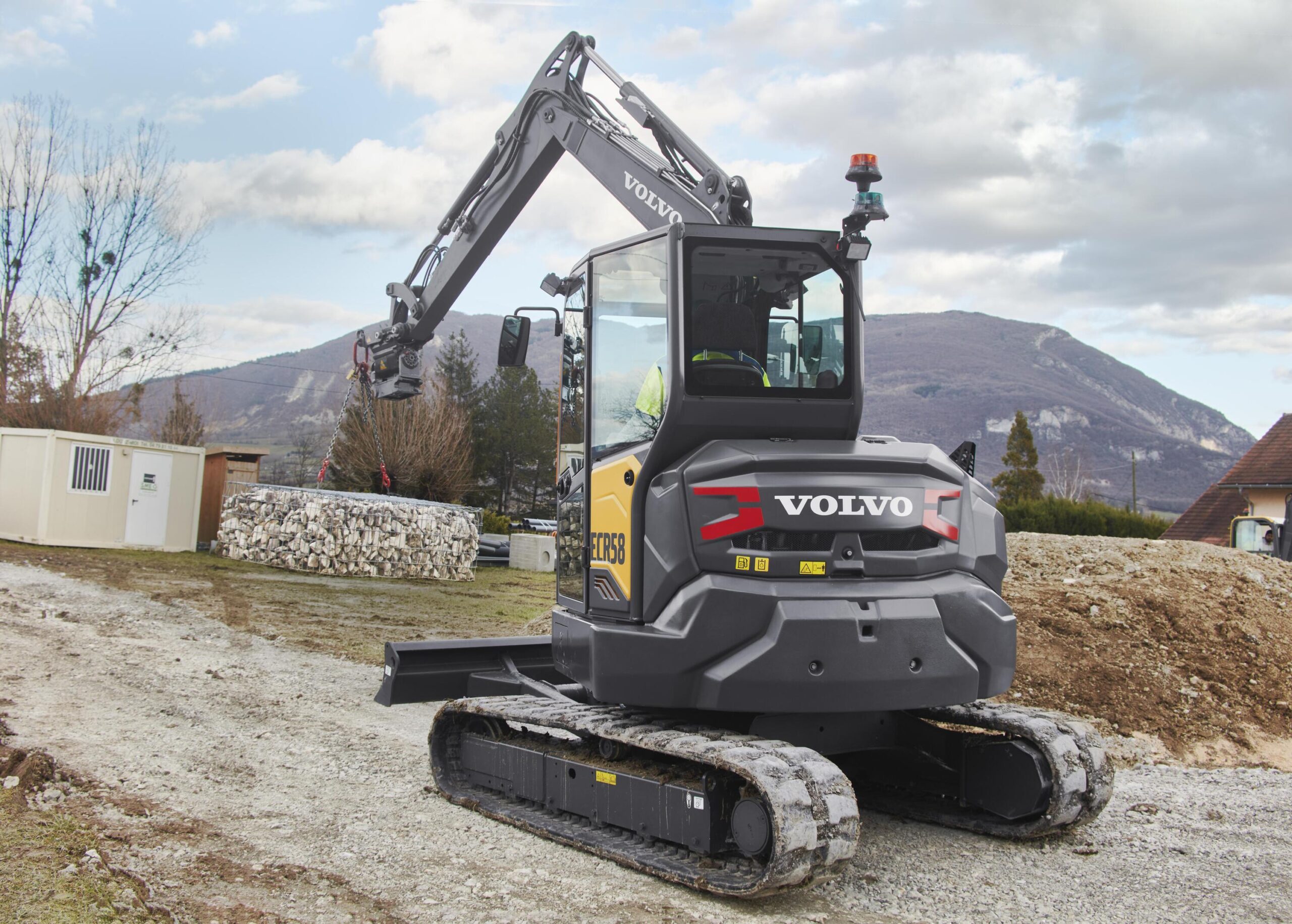

Unmatched Performance
Experience the power of a larger machine with superior breakout and lifting forces. This outstanding performance, combined with excellent stability, results in fast cycle times and high productivity on any job.

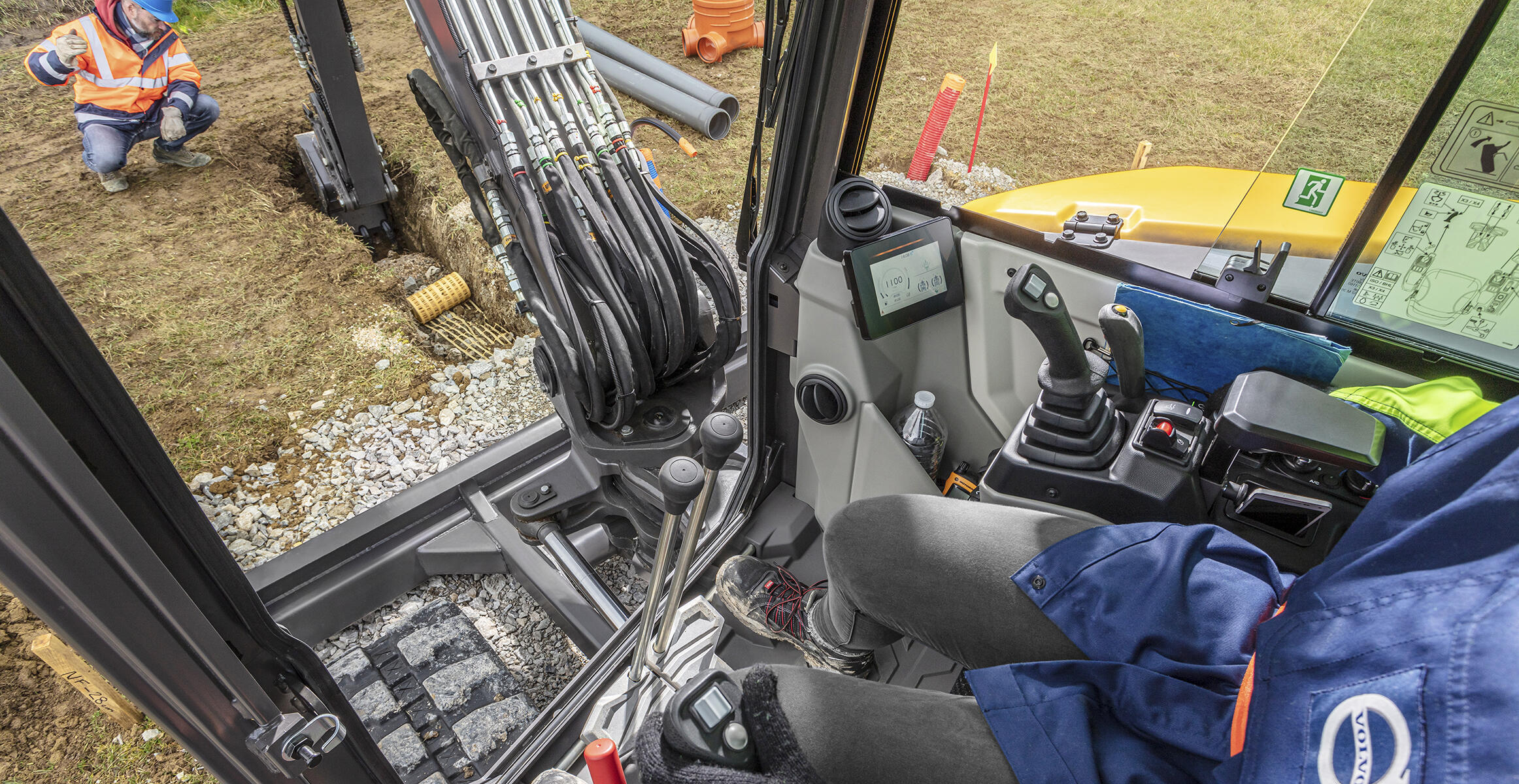

First-Class Operator Station
The new F-generation cab offers a premium workspace. With an automotive-style jog-wheel, 5″ color display, and ergonomic controls, it provides a comfortable and intuitive environment for all-day productivity.
Customizable Attachment Control
Easily optimize the machine for any attachment. The responsive fingertip controls allow you to precisely adjust the hydraulic flows, ensuring you get the maximum performance from every tool you use.
