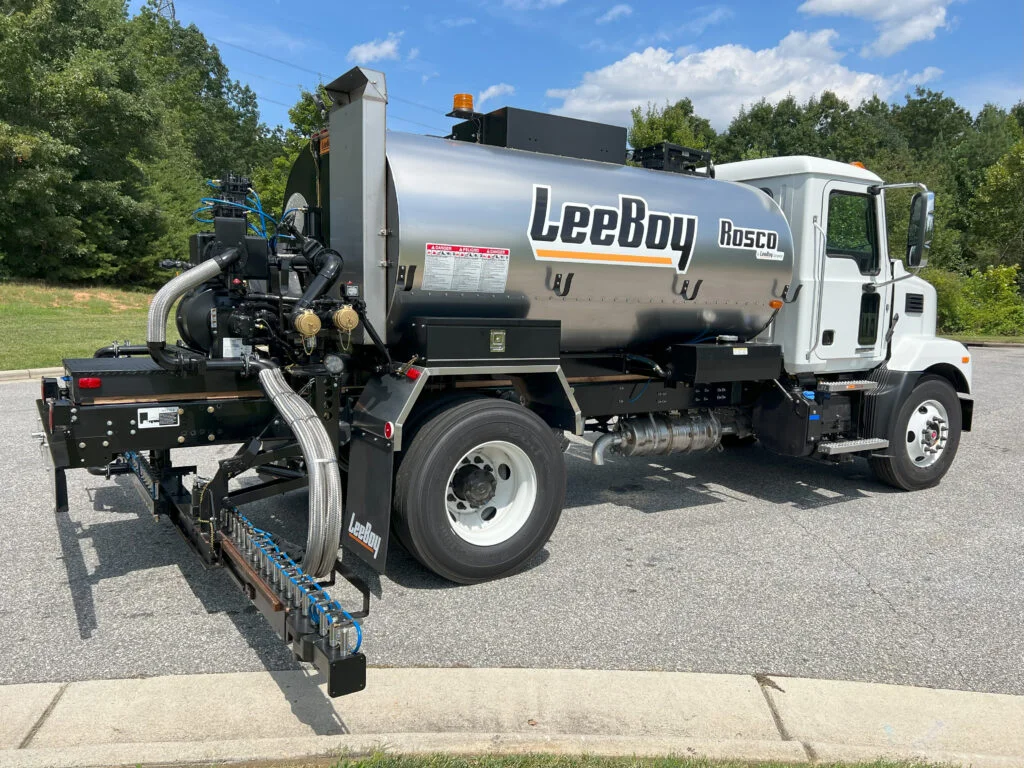

LeeBoy MAX3B
LeeBoy Asphalt Distributors
- Extended warranty
- Flexible financing
- Tailored service contracts
The LeeBoy Maximizer 3B asphalt distributor features an 8-to-16-foot fully circulating extending spraybar for maximum coverage efficiency on large-scale tack coat and chip seal operations. With a 400-gallon-per-minute Viking asphalt pump, automatic in-cab Plus+1 CAN Bus controls, straight-line start and stop, and the Enviro-Flush clean-out system, the MAX3B delivers consistent, accurate application for contractors and municipalities alike.
Technical specifications
Here are the key specifications for MAX3B. Want more details? Download the brochure or contact us.
- Machine Type Asphalt Distributor
- Min. Tank Capacity 1 050 - 5 313 gal
- Pump Output 400 gpm
- Spraybar Width 16 ft
- Drive variants Combustion
Benefits & Features
Here are the key benefits and features of the MAX3B. Want to know more? Download the brochure or get in touch with us.
8-to-16-Foot Fully Circulating Extending Spraybar
The MAX3B features an 8-to-16-foot fully circulating extending spraybar that covers a wide area in an extremely efficient manner. The exclusive two-way spraybar breakaway system with safety-relieving feature protects against obstructions in both directions. Quick-disconnect allows operators to change spray widths in 4-inch increments, and brass slotted nozzles on 4-inch centers ensure uniform triple overlap fan spray coverage.
400 GPM Viking Pump with Enviro-Flush Clean-Out
The MAX3B uses a Viking positive displacement pump delivering 400 gallons per minute for fast, consistent application across the full extending spraybar width. The Enviro-Flush clean-out system circulates material through the entire system and returns it to the tank, ensuring thorough clean-out between applications. The 25-gallon clean-out capacity handles all material types efficiently.
Plus+1 CAN Bus Controls with Straight-Line Start and Stop
The MAX3B features automatic in-cab Plus+1 CAN Bus controls with a 7-inch high-resolution color display and 12 preset application rates for instant retrieval. The straight-line start and stop feature ensures accurate application at the beginning and end of each pass. Radar horn speed and distance monitoring guarantees accurate application rate regardless of spraybar width or vehicle speed.
