Gradall XL 4300 V
Gradall Rough Terrain Wheeled
- Extended warranty
- Flexible financing
- Tailored service contracts
Sure-footed like a conventional crawler, but mobile on pavement as well as dirt, Gradall continues its tradition of designing and building rubber tire excavators with superior productivity as well as versatility. Members of the Sourcewell and Canoe cooperative purchasing agencies can purchase...
Sure-footed like a conventional crawler, but mobile on pavement as well as dirt, Gradall continues its tradition of designing and building rubber tire excavators with superior productivity as well as versatility. Members of the Sourcewell and Canoe cooperative purchasing agencies can purchase Gradall machines without going through an extensive bidding process.
Technical specifications
Here are the key specifications for XL 4300 V. Want more details? Download the brochure or contact us.
- Operating Weight 43 580 lb
- Gross power (HP) 173 hp
- Max. digging depth 21.25 ft
- Max Reach at Groundline 30.33 ft
- Max Loading Height 17 ft
- Boom Telescope 12.50 ft
- Boom Tilt 220 deg
- Bucket Pivot Angle 165 deg
- Rated Boom Force 22 075 lb
- Rated Bucket Breakout Force 25 405 lb
- Max Lift Capacity 12 540 lb
- Transport Length 26.50 ft
- Transport Height 12.83 ft
- Transport Width 9.08 ft
- Swing Clearance 8 ft
- Engine Volvo TAD571 VE Tier 4f 5.1L
- Max. speed 17.50 mph
- Ground Clearance 11 in
- Drive 4 x 4
- Wheelbase 8.75 ft
Benefits & Features
Here are the key benefits and features of the XL 4300 V. Want to know more? Download the brochure or get in touch with us.

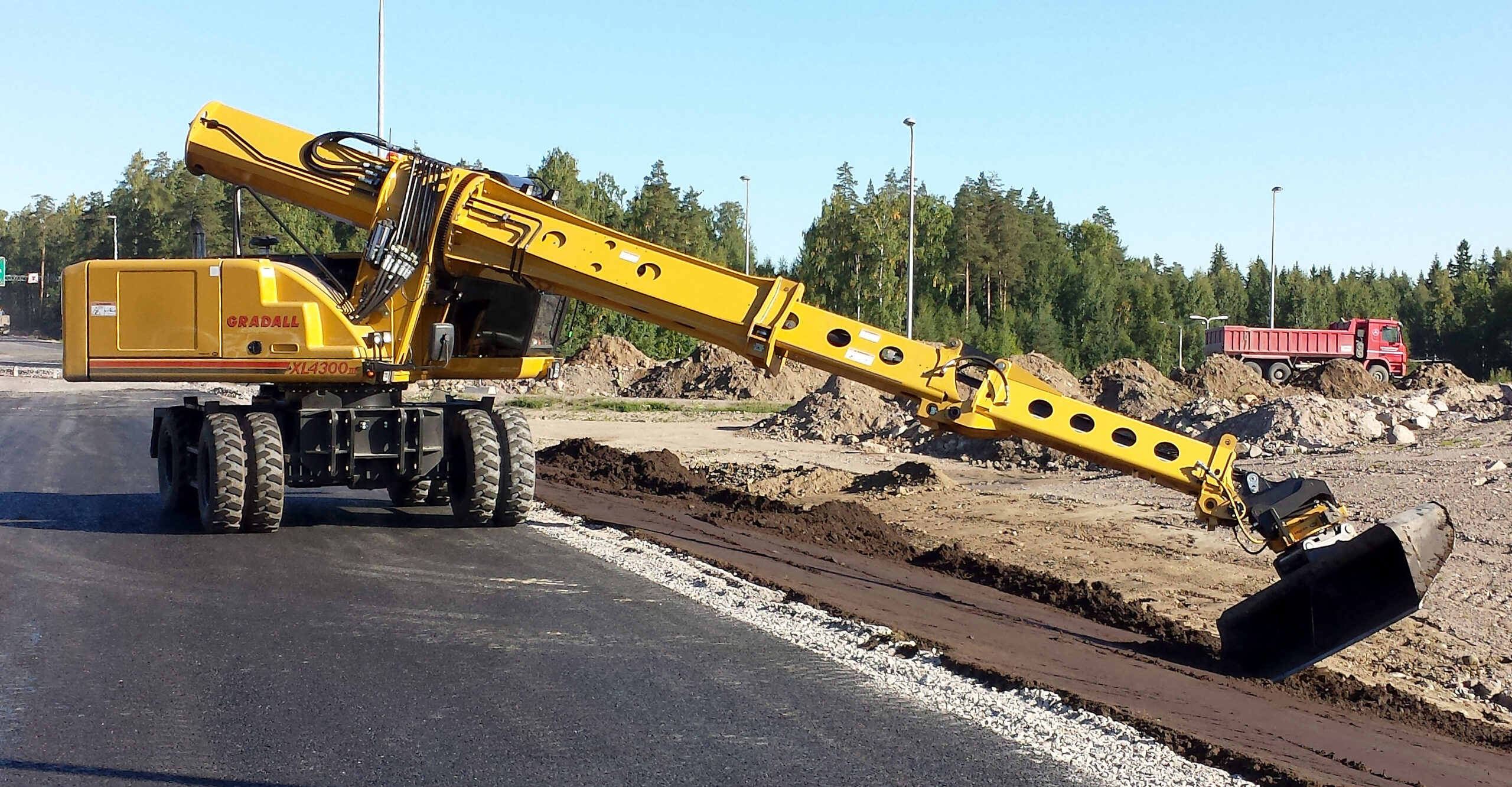

Unmatched Reach and Power for Heavy-Duty Performance
The Gradall XL 4300 V delivers 173 HP and a rated boom force of 22,075 lb, combined with a remarkable max digging depth of 21′ 3″ and a max reach of 30′ 4″. This powerful combination ensures efficient, precise excavation and loading on any job site, enhancing productivity and reducing cycle times.

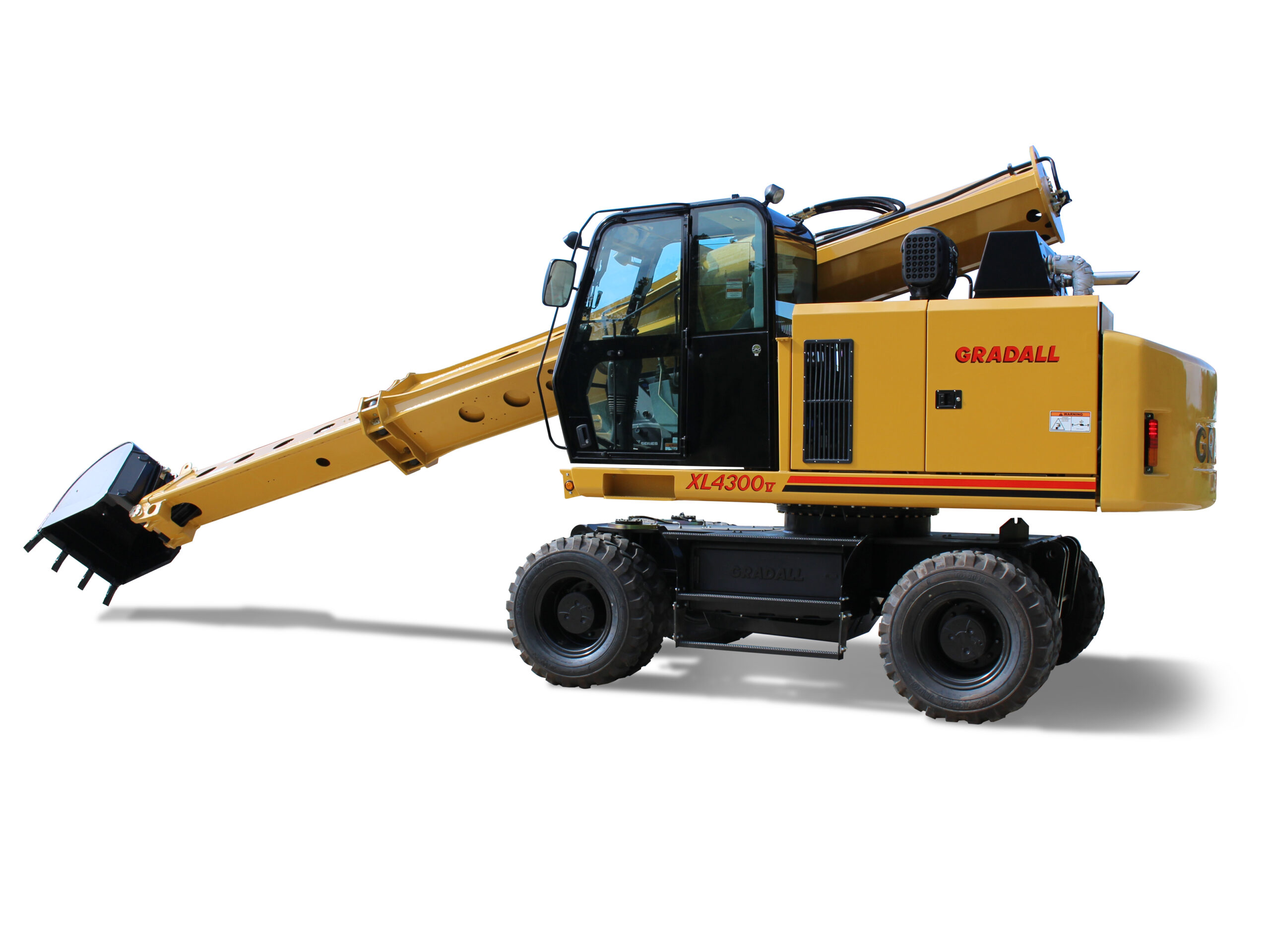

Operator Comfort and Safety with Advanced Mobility
Designed for operator ease, the XL 4300 V features a smooth 4×4 drive system and a max speed of 17.5 mph for quick, safe transit between jobs. With 11″ ground clearance, an 8′ swing clearance, and a spacious cab, it offers superior maneuverability and comfort, minimizing fatigue and maximizing safety.

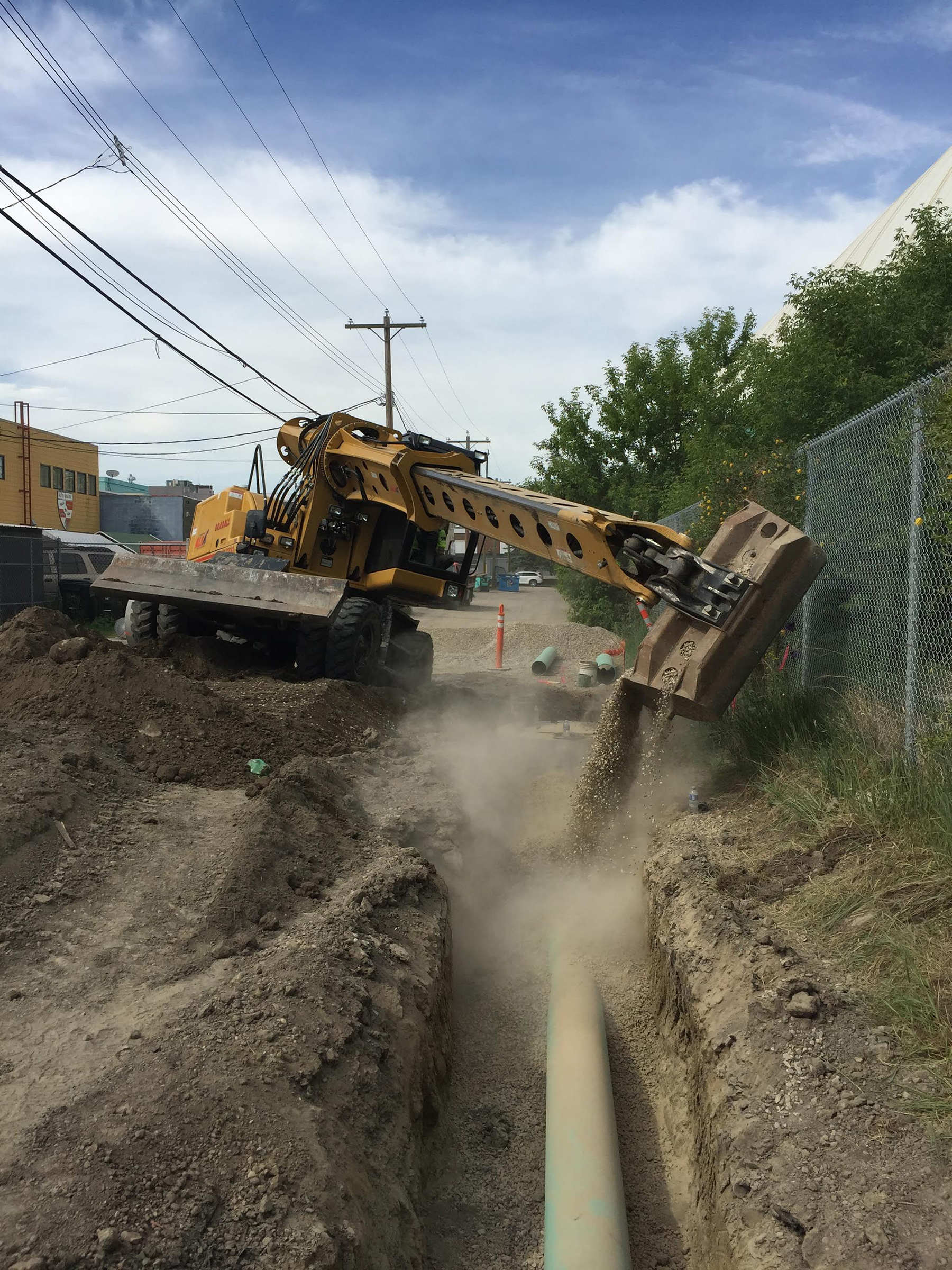

Versatile Boom and Bucket Movement for Complex Tasks
Featuring a 12′ 6″ telescoping boom with 220° tilt and a bucket pivot angle of 165°, the XL 4300 V adapts effortlessly to varied angles and tight spaces. Its 12,540 lb max lift capacity and 25,405 lb bucket breakout force enable versatile handling of materials, making it ideal for diverse construction and maintenance applications.
