Volvo EC300
Large crawler excavators
- Predictable costs and total control
- Modern equipment with cutting-edge technology
- Rent only for the time you need

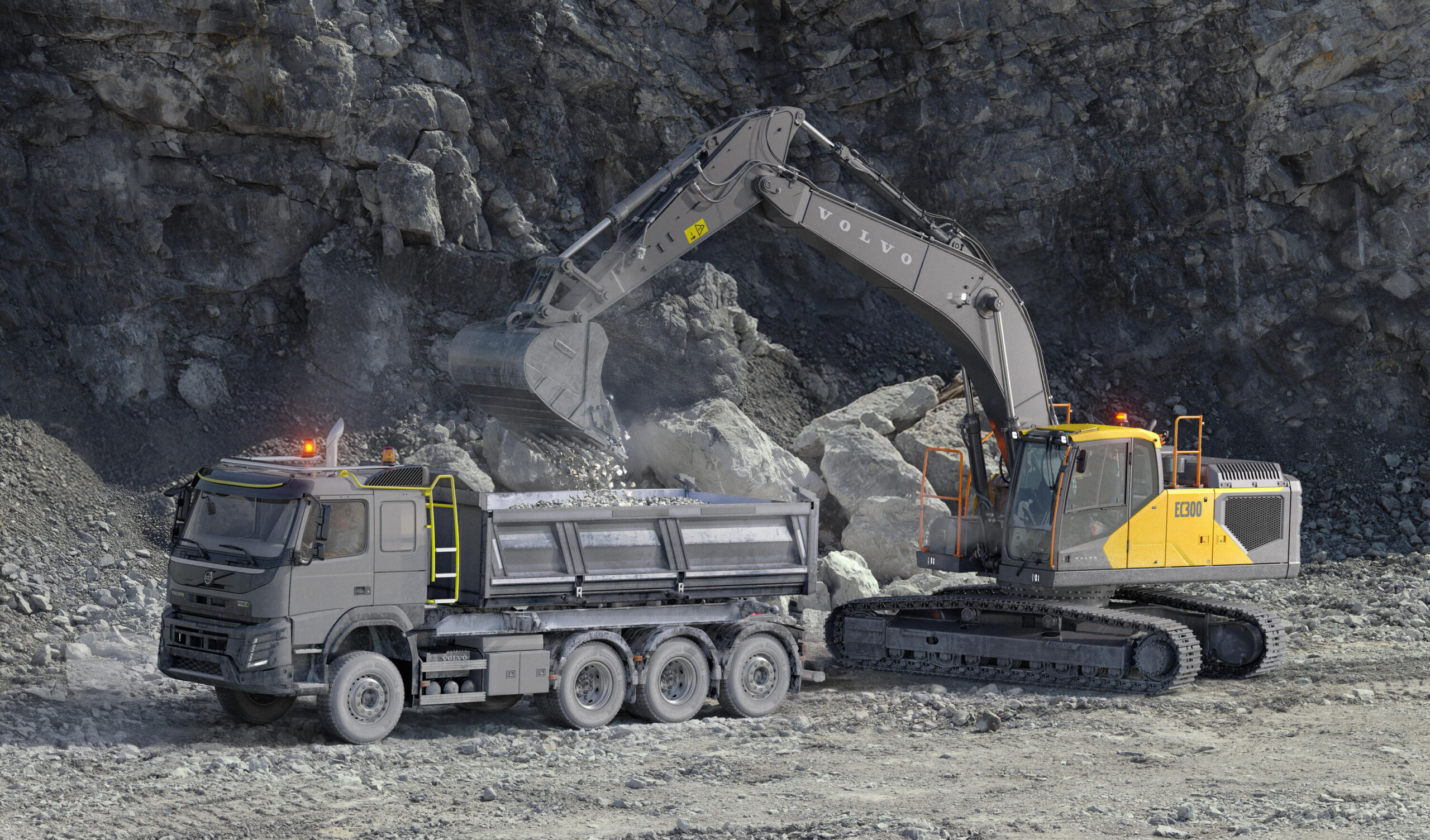

A straightforward solution, the Volvo EC300 is a versatile excavator used in quarries, trenching, digging, and site preparation. Designed for strong returns, it offers a straightforward solution with maximum payback.

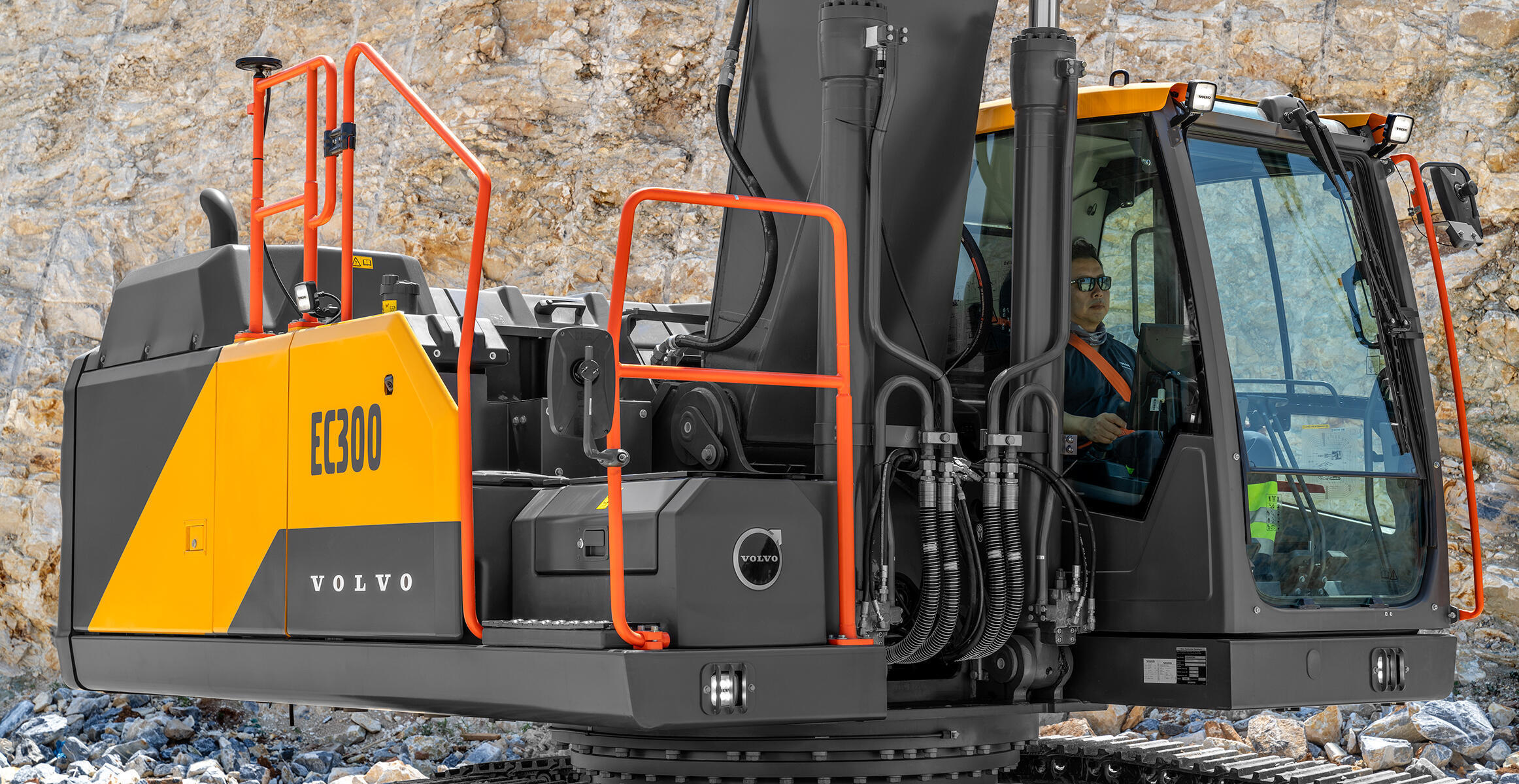

With enhanced access, superior visibility, extended service intervals, and improved fuel efficiency, the EC300 delivers the safety, comfort, reliability, and performance expected from Volvo. Built for productivity and durability, it is a smart choice for long-term efficiency on demanding projects.
Technical specifications
Here are the key specifications for Volvo EC300. Want more details? Download the brochure or contact us.
- Min. Operating weight 67 373 - 72 356 lb
- Min. Excavator bucket capacity 0.68 - 2.75 yd³
- Gross power (kW) 253 hp
- Gross power (HP) 257 hp
- Engine D8M
- Max. flow hydraulic pump 72.90 gal/min
- Max. slew speed 11 rpm
- Max. slew torque 84 820 lbf·ft
- Max. drawbar pull 55 753 lbf
- Max. breakout force 48 109 lbf
- Max. tear out force 40 241 lbf
- Max. digging reach 33.42 ft
- Max. digging depth 22.42 ft
- Max. cutting height 31.50 ft
- Tail swing radius 10.25 ft
- Sound level in cab (LpA) 70 dB
- External sound level (LwH) 104 dB
Benefits & Features
Here are the key benefits and features of the Volvo EC300. Want to know more? Download the brochure or get in touch with us.
New Generation Electro-Hydraulics
Increase your productivity with the intelligent, new generation electro-hydraulic system. It provides faster cycle times, excellent control, and smoother combined movements for a more efficient and precise operation.
Powerful and Efficient D8 Engine
The robust Volvo D8 engine delivers high performance with low fuel consumption. It provides the power and torque needed for heavy-duty digging and lifting, while helping you reduce operating costs and lower your environmental footprint.
Volvo Co-Pilot with Productivity Apps
Transform your machine into a smart tool with the Volvo Co-Pilot. The large touchscreen gives you access to productivity-boosting apps like Dig Assist and On-Board Weighing, improving your accuracy and efficiency on any job site.
