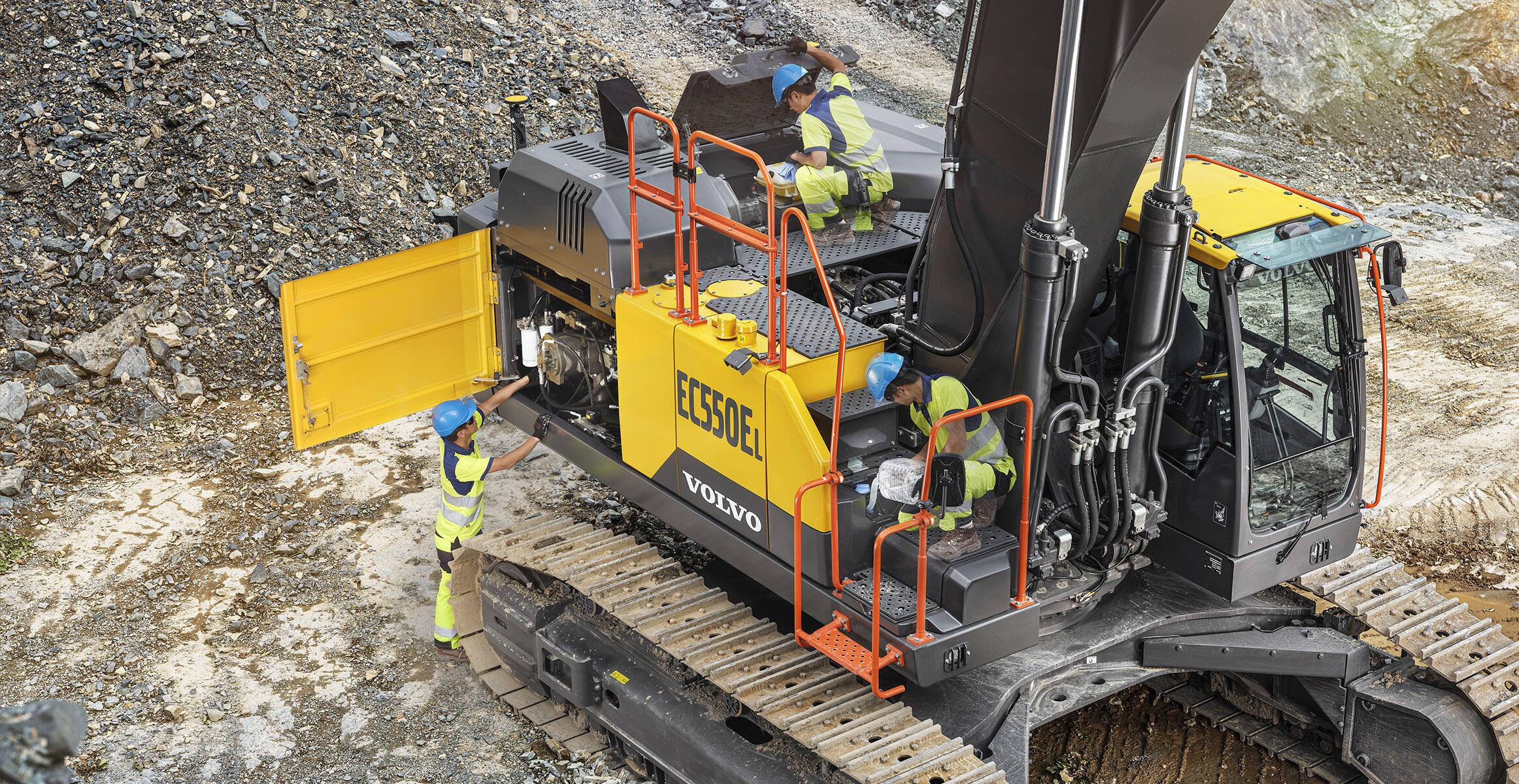

Volvo EC550E
Large crawler excavators
- Predictable costs and total control
- Modern equipment with cutting-edge technology
- Rent only for the time you need
Big on profitability, the Volvo EC550E delivers the durability and performance often expected from a 60-ton machine. Ideal for heavy-duty digging, mass excavation, and large site preparation, it features new-generation electro-hydraulics that boost productivity by up to 20% and improve fuel efficiency by up to 25%.
Built for the toughest applications, the EC550E combines reinforced components, intelligent hydraulics, and Volvo’s proven engine technology to deliver maximum uptime and lower operating costs. Its powerful digging force and smooth control support faster cycle times and consistent performance in demanding conditions.
Operators benefit from Volvo’s spacious, low-noise cab, designed to reduce fatigue and improve productivity throughout the day, making the EC550E a reliable and highly efficient 50-ton class machine.
Technical specifications
Here are the key specifications for Volvo EC550E. Want more details? Download the brochure or contact us.
- Min. Operating weight 120 571 - 125 575 lb
- Min. Excavator bucket capacity 3.14 - 5.49 yd³
- Gross power (kW) 445 hp
- Gross power (HP) 445 hp
- Engine D13J
- Max. flow hydraulic pump 220 gal/min
- Max. slew speed 9.40 rpm
- Max. slew torque 145 300 lbf·ft
- Max. drawbar pull 78 683 lbf
- Max. breakout force 69 270 lbf
- Max. tear out force 53 980 lbf
- Max. digging reach 40 ft
- Max. digging depth 25.25 ft
- Max. cutting height 37.33 ft
- Tail swing radius 12.75 ft
- Sound level in cab (LpA) 71 dB
- External sound level (LwH) 107 dB
Benefits & Features
Here are the key benefits and features of the Volvo EC550E. Want to know more? Download the brochure or get in touch with us.
High Production and Fast Cycles
Built for mass excavation, the EC550E is designed to load haul trucks in the 30-40 ton class with maximum efficiency. Independent and simultaneous hydraulic movements ensure fast cycle times and superior productivity in any operation.
Unrivalled Fuel Efficiency
Lower your cost per tonne with industry-leading fuel efficiency. The powerful Volvo engine and advanced electro-hydraulics work in harmony to deliver high performance with low fuel consumption, directly boosting your profitability.
Built for Extreme Durability
Count on the EC550E to perform in the toughest applications. With a reinforced undercarriage, boom, and arm built with high-strength steel, this machine is engineered for a long service life and maximum uptime in demanding environments.
