Gradall XL 5200 V
Gradall Crawler Excavators
- Extended warranty
- Flexible financing
- Tailored service contracts
No other crawler can handle so many different jobs, even working in tunnels, under bridges and on the ground floors of multi-story buildings. Maneuvering on rocky surfaces, in sand and on uneven terrain, Gradall crawlers handle a wider variety of jobs with full-tilting, telescoping boom movements....
No other crawler can handle so many different jobs, even working in tunnels, under bridges and on the ground floors of multi-story buildings. Maneuvering on rocky surfaces, in sand and on uneven terrain, Gradall crawlers handle a wider variety of jobs with full-tilting, telescoping boom movements. Members of the Sourcewell and Canoe cooperative purchasing agencies can purchase Gradall machines without going through an extensive bidding process.
Technical specifications
Here are the key specifications for XL 5200 V. Want more details? Download the brochure or contact us.
- Operating Weight 54 452 lb
- Gross power (HP) 173 hp
- Max. digging depth 25.33 ft
- Max Reach at Groundline 33.92 ft
- Max Loading Height 17.92 ft
- Boom Telescope 14 ft
- Boom Tilt 220 deg
- Bucket Pivot Angle 165 deg
- Rated Boom Force 24 941 lb
- Rated Bucket Breakout Force 25 405 lb
- Max Lift Capacity 13 764 lb
- Transport Length 28.92 ft
- Transport Height 10.75 ft
- Transport Width 10.50 ft
- Swing Clearance 8.50 ft
- Engine Volvo TAD571 VE Tier 4f 5.1L
- Max. speed 3.40 mph
- Ground Clearance 18 in
Benefits & Features
Here are the key benefits and features of the XL 5200 V. Want to know more? Download the brochure or get in touch with us.
Powerful Performance for Heavy-Duty Excavation
The Gradall XL 5200 V delivers 173 HP with a Volvo Tier 4f engine, providing exceptional rated boom force of 24,941 lb and bucket breakout of 25,405 lb. Its max digging depth of 25′ 4″ and max reach of 33′ 11″ ensure efficient handling of demanding excavation tasks with confidence and precision.

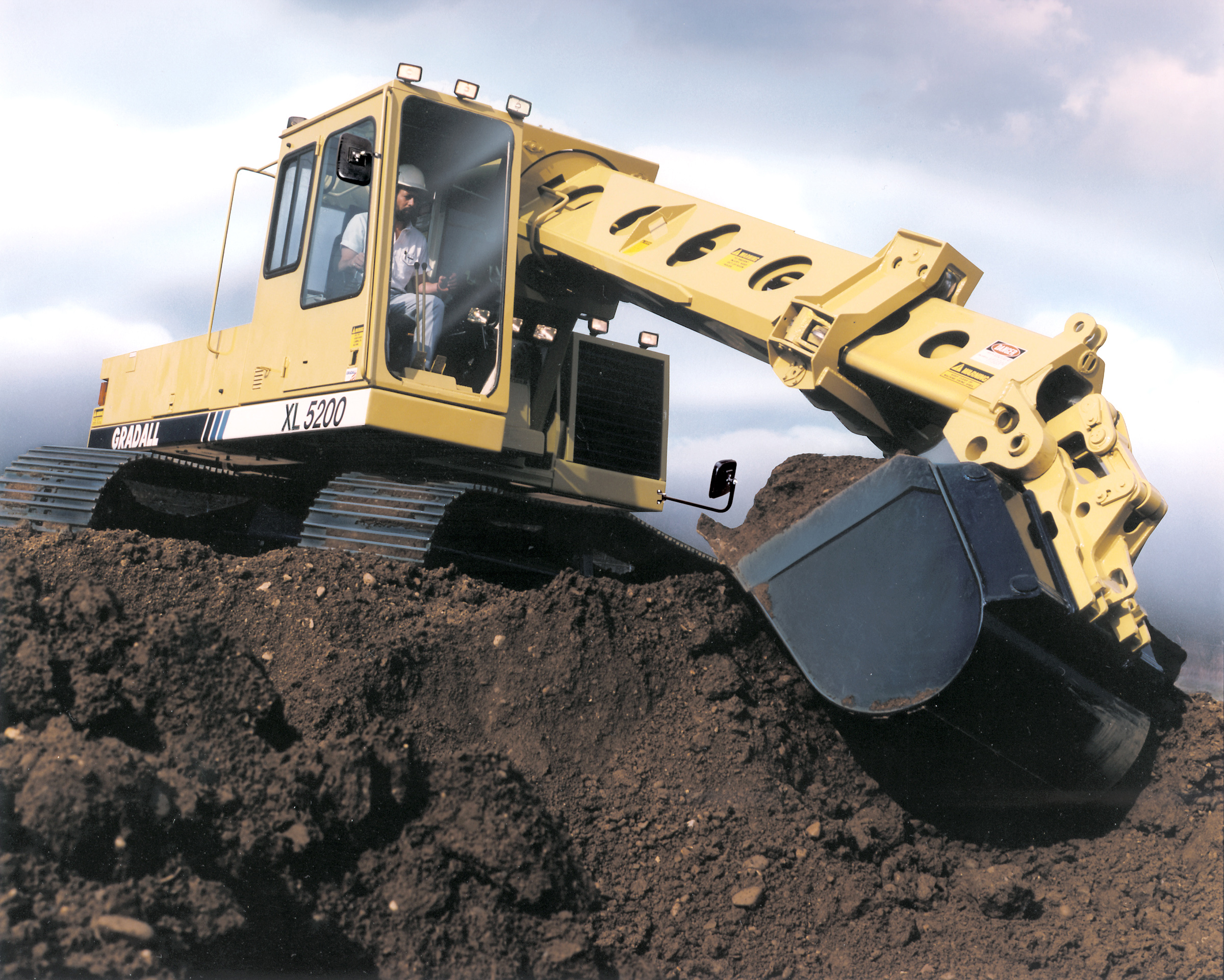

Versatile Boom with Exceptional Reach and Flexibility
Featuring a 14′ telescoping boom with 220° tilt and a 165° bucket pivot angle, the XL 5200 V offers unmatched versatility on the jobsite. With a max loading height of 17′ 11″ and max lift capacity of 13,764 lb, operators can tackle a wide range of materials and applications effortlessly.
Operator Comfort and Safety in Every Detail
Designed for operator efficiency, the XL 5200 V’s 18″ ground clearance and 8′ 6″ swing clearance provide smooth maneuverability in tight spaces. Its transport dimensions ensure easy relocation, while the controlled max speed of 3.4 mph balances productivity with safe, precise machine handling.
