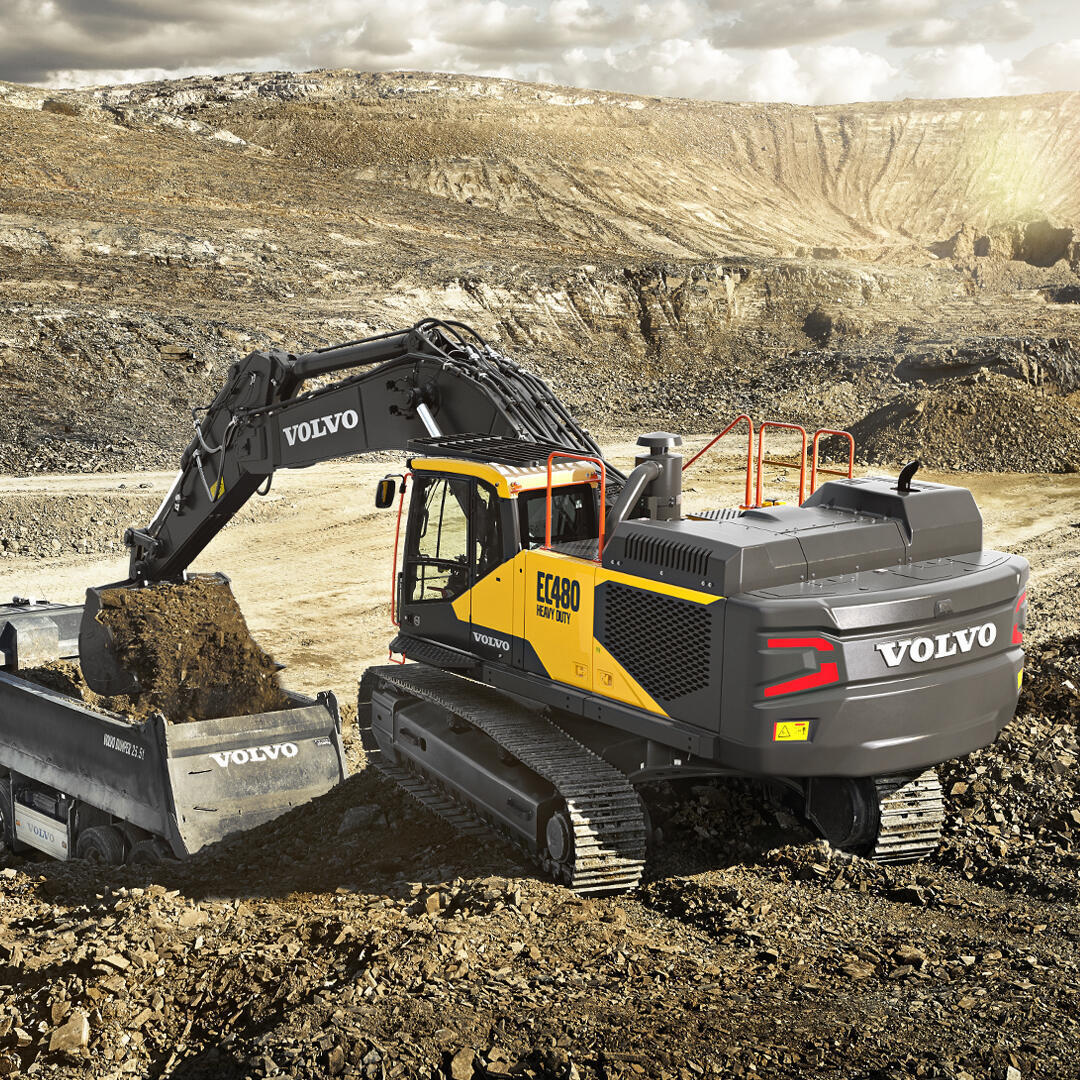

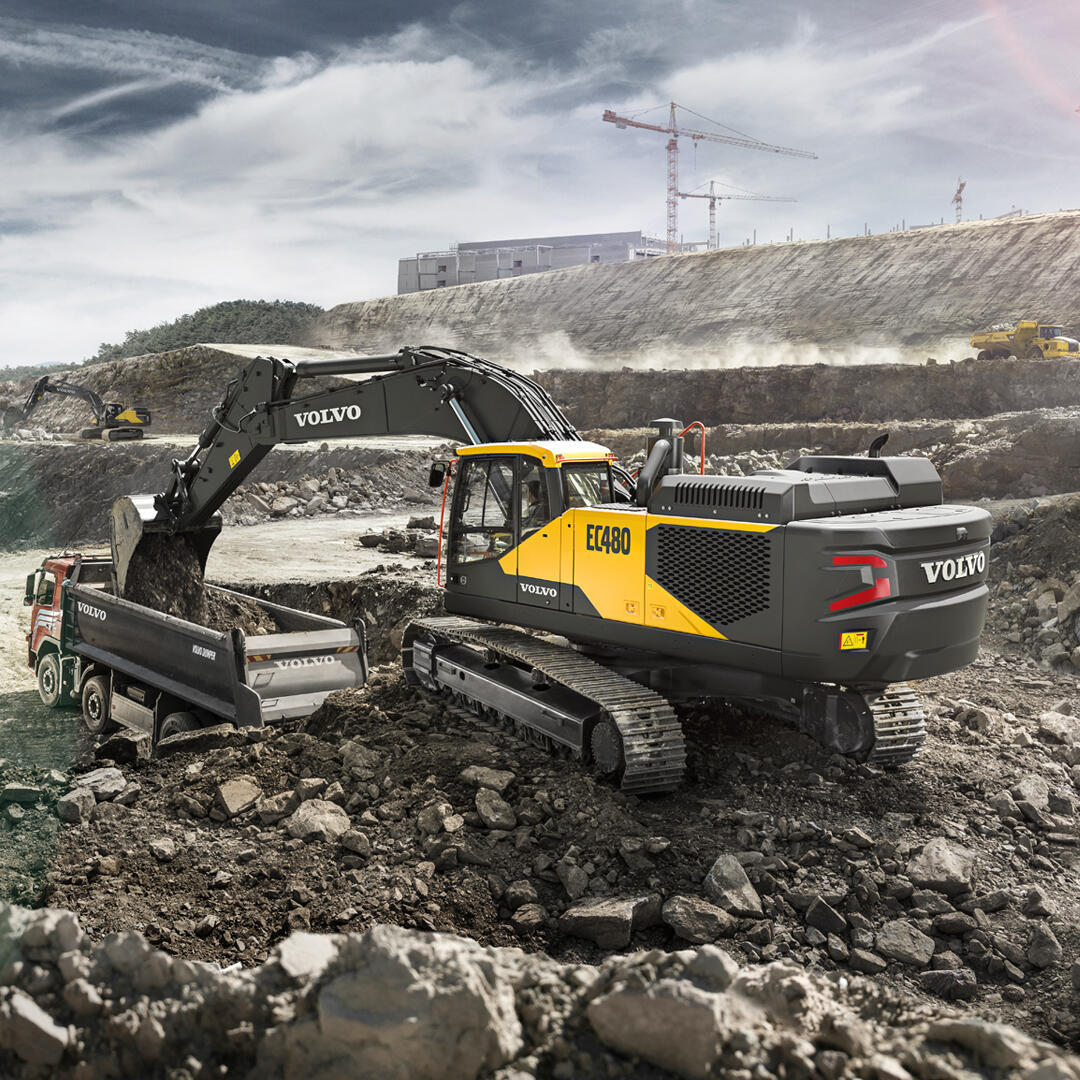

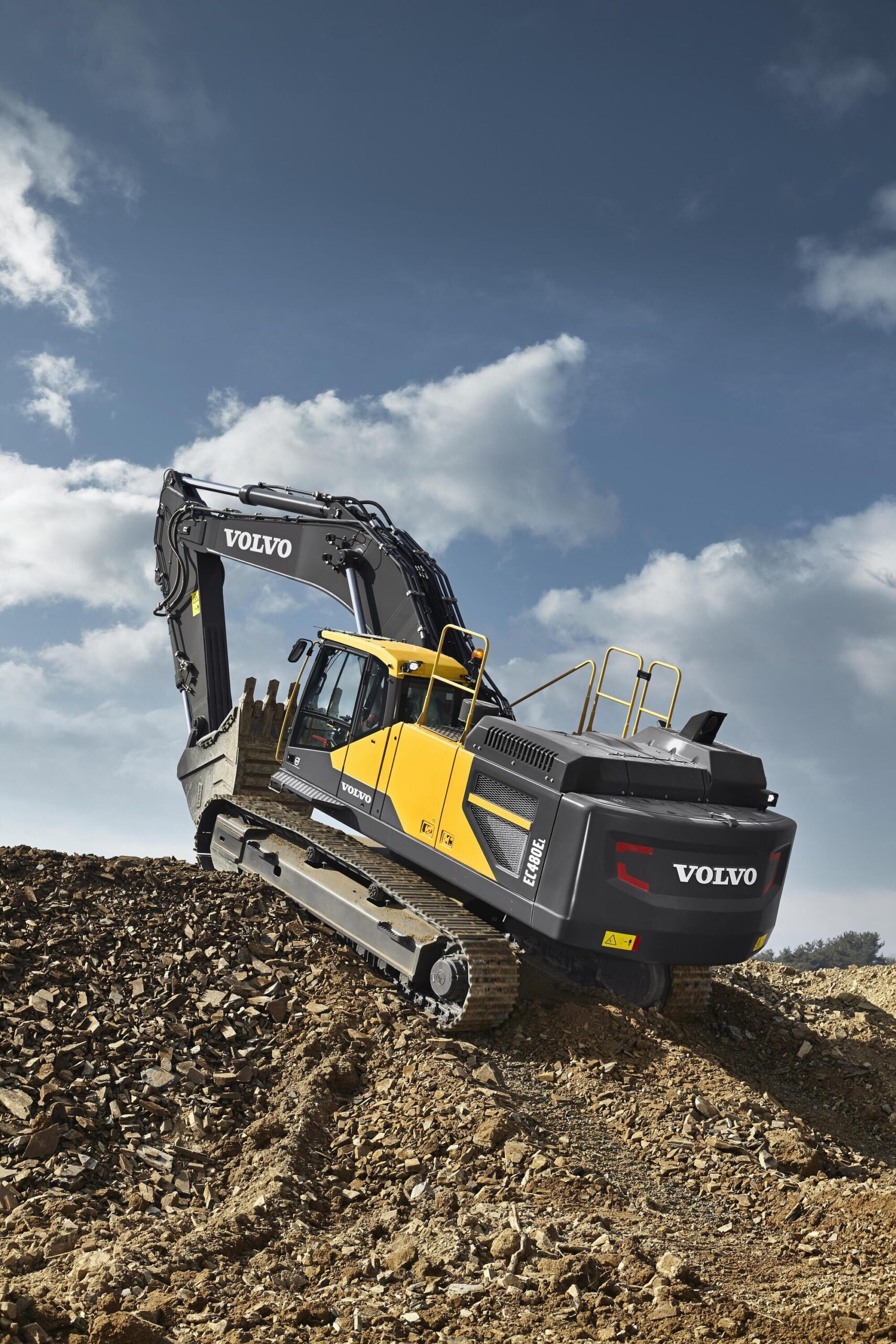

Volvo EC480E
Large crawler excavators
- Predictable costs and total control
- Modern equipment with cutting-edge technology
- Rent only for the time you need
Productivity at your fingertips, the Volvo EC480E is a production powerhouse designed to maximize output while reducing fuel consumption. Featuring Volvo’s ECO mode and an advanced electro-hydraulic control system, it delivers improved fuel efficiency and strong performance without compromise.
Engineered for strength and reliability, the EC480E combines a high-performance Volvo engine with a reinforced undercarriage and durable components to tackle the toughest applications. Precise hydraulics and intelligent control deliver faster cycle times and smooth operation to boost productivity on every site.
With Volvo’s spacious, operator-focused cab and simplified maintenance access, the EC480E provides the efficiency, durability, and profitability needed for large-scale excavation and quarrying.
Technical specifications
Here are the key specifications for Volvo EC480E. Want more details? Download the brochure or contact us.
- Min. Operating weight 105 736 - 108 890 lb
- Min. Excavator bucket capacity 2.09 - 4.32 yd³
- Gross power (kW) 380 hp
- Gross power (HP) 380 hp
- Engine D13J
- Max. flow hydraulic pump 198.60 gal/min
- Max. slew speed 9.30 rpm
- Max. slew torque 122 657 lbf·ft
- Max. drawbar pull 74 951 lbf
- Max. breakout force 63 935 lbf
- Max. tear out force 49 435 lbf
- Max. digging reach 39.83 ft
- Max. digging depth 25.67 ft
- Max. cutting height 5 ft
- Tail swing radius 12.42 ft
- Sound level in cab (LpA) 71 dB
- External sound level (LwH) 106 dB
Benefits & Features
Here are the key benefits and features of the Volvo EC480E. Want to know more? Download the brochure or get in touch with us.
Powerful and Reliable Volvo Engine
The robust Volvo D13 engine is at the heart of the machine, delivering high torque at low rpm. This provides the power needed for heavy-duty tasks while ensuring the reliability and long service life you expect from Volvo.
Advanced Hydraulic System
Experience fast cycle times and smooth control with the advanced hydraulic system. It is optimized to work in harmony with the engine, providing high hydraulic flow for responsive and highly productive combined operations.
Reinforced and Durable Undercarriage
Engineered for maximum uptime in the toughest jobs like quarrying. The reinforced undercarriage with durable components is designed to withstand high-impact forces, delivering the ultimate in durability and reliability.
