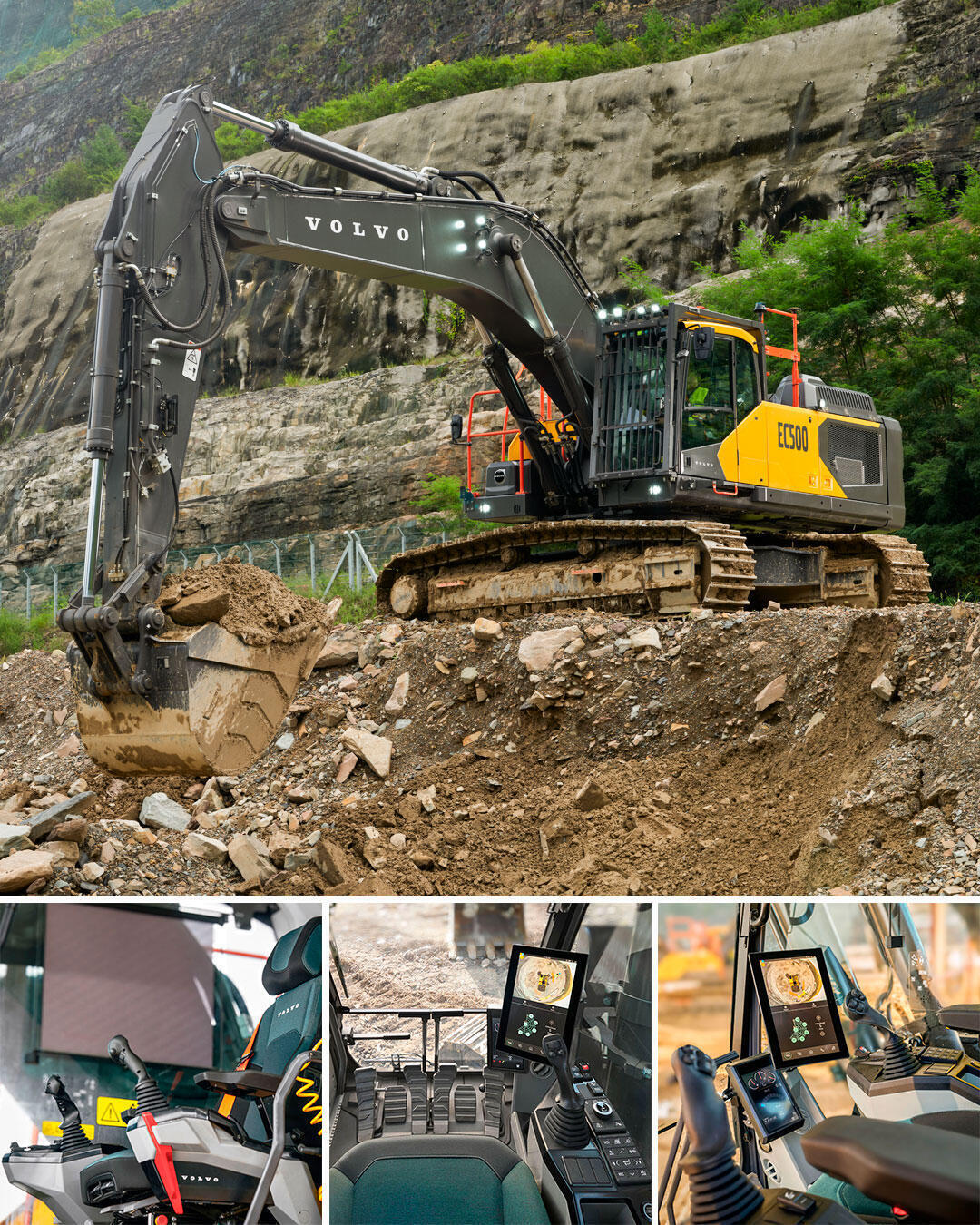

Volvo EC500
Large crawler excavators
- Predictable costs and total control
- Modern equipment with cutting-edge technology
- Rent only for the time you need
Get a new edge with the Volvo EC500. Now bigger and more capable, it’s built for mining, quarrying, and heavy construction worldwide. Delivering up to 15% improved fuel efficiency and a lower total cost of ownership, it combines powerful performance with reduced operating costs, enhanced serviceability, and a modern, comfortable cab.
Powered by Volvo engine technology and an advanced electro-hydraulic system, the EC500 delivers strong digging force, fast cycle times, and precise control in demanding conditions. Its reinforced undercarriage and durable components support reliable heavy-duty performance. The operator-focused cab features modern comfort, panoramic visibility, and intuitive controls to enhance productivity, while grouped service points improve accessibility and help minimize downtime, setting new benchmarks for efficiency and long-lasting performance.
Technical specifications
Here are the key specifications for Volvo EC500. Want more details? Download the brochure or contact us.
- Min. Operating weight 109 790 - 116 404 lb
- Min. Excavator bucket capacity 1.57 - 4.32 yd³
- Gross power (kW) 418 hp
- Gross power (HP) 424 hp
- Engine D13J
- Max. flow hydraulic pump 99.30 gal/min
- Max. slew speed 9.30 rpm
- Max. slew torque 122 435 lbf·ft
- Max. drawbar pull 74 861 lbf
- Max. breakout force 69 016 lbf
- Max. tear out force 58 226 lbf
- Max. digging reach 38.75 ft
- Max. digging depth 24.50 ft
- Max. cutting height 20 ft
- Tail swing radius 12.75 ft
- Sound level in cab (LpA) 71 dB
- External sound level (LwH) 107 dB
Benefits & Features
Here are the key benefits and features of the Volvo EC500. Want to know more? Download the brochure or get in touch with us.
New Generation Electro-Hydraulics
Experience faster cycle times and superior control with the new generation electro-hydraulic system. It provides a more precise and responsive performance, enabling smooth combined movements for maximum productivity.
Powerful and Efficient D13 Engine
At its core is the proven Volvo D13 engine. It delivers high power and torque for the toughest applications, while its advanced design ensures outstanding fuel efficiency, lowering your overall operating costs per tonne.
Volvo Co-Pilot with Productivity Apps
Transform your machine into a smart production tool with the Volvo Co-Pilot. The large, user-friendly touchscreen gives you access to apps like Dig Assist and On-Board Weighing, boosting your accuracy and efficiency.
